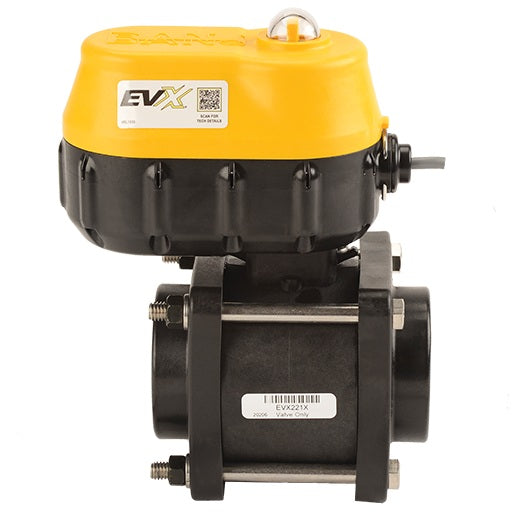

EVXR221 by Banjo | EVX Regulating Bolted Electric Valve | Full Port | 2" Pipe Size | 2" Opening Thru Ball | FKM Seals | Polypropylene

EVXR221 by Banjo | EVX Regulating Bolted Electric Valve | Full Port | 2" Pipe Size | 2" Opening Thru Ball | FKM Seals | Polypropylene

Sale price$606.98
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • 12-volt DC operated.
  • 24-volt available.
  • Open/closed indicator.
  • ON/OFF has 1½ second response.
  • Regulating has 4 second response.
  • Open/Close verification wires available.
  • IP68 waterproof.
  • -0 to 150F (-18 to 65C) operating.
  • -67 to 221F (-55 to 105C) storage.
  • On/Off Actuator rated to 500,000 cycles.
  • Regulating Actuator rated to 250,000 cycles.
  • Valve rated to 50,000 cycles leak-free.
  • Bolted valves have the same exact dimensions as our legacy EV valves.
  • Additional protocols available including CAN/ISO BUS
Materials:
  • 316 stainless steel ball & stem
  • Stainless steel hardware
  • Fiberglass reinforced polypropylene
  • PTFE seats
  • FKM stem seals
On/Off:
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)
Part Number Description Max
PSI		 Pipe
Size		 Opening
Thru Ball		 Optional
Handle
Kit		 Repair
Kit
EVXR201 2" Standard Port Electric Valve 250 2" 1-1/2" VP20153 EVX20200
EVXR221 2" Full Port Electric Valve 125 2" 2" VP20153 EVX25200

Additional Product Data:

Series:
  • EVX Series
MAWP:

125

Shape:

Straight

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
