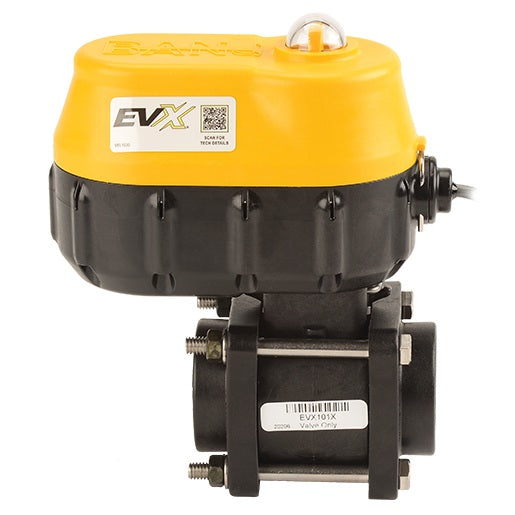

EVX101 by Banjo | EVX On/Off Bolted Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

EVX101 by Banjo | EVX On/Off Bolted Electric Valve | Full Port | 1" Pipe Size | 1" Opening Thru Ball | FKM Seals | Polypropylene

Sale price$383.57
In stock
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • 12-volt DC operated
  • 24-volt available
  • Open/closed indicator
  • 3/4"-1-1/4" ON/OFF has 3/4 sec response
  • 1-1/2" ON/OFF has 1-1/2 sec response
  • Regulating has 4 sec response
  • Open/Close verification wires available
  • IP68 waterproof
  • -0 to 150F (-18 to 65C) operating
  • -67 to 221F (-55 to 105C) storage
  • On/Off Actuator rated to 500,000 cycles
  • Regulating Actuator rated to 250,000 cycles
  • Valve rated to 50,000 cycles leak-free
  • Bolted valves have the same exact dimensions as our legacy EV valves.
  • Additional protocols available including CAN/ISO BUS
Materials:
  • 316 stainless steel ball & stem
  • Stainless steel hardware
  • Fiberglass reinforced polypropylene
  • PTFE seats
  • FKM stem seals
On/Off:
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) 0VDC (Close)
4 Wire Regulating:
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)
Part Number Description Max
PSI		 Pipe
Size		 Opening
Thru Ball		 Optional
Handle
Kit		 Repair
Kit
EVX071 3/4" Full Port Electric Valve 300 PSI 3/4" 1" VP20153SH EVX10200
EVX101 1" Full Port Electric Valve 300 PSI 1" 1" VP20153SH EVX10200
EVX121 1-1/4" Standard Port Electric Valve 300 PSI 1-1/4" 1" VP20153SH EVX10200
EVX151 1-1/2" Full Port Electric Valve 250 PSI 1-1/2" 1-1/2" VP20153SH EVX20200

Additional Product Data:

Series:
  • EVX Series
MAWP:

300

Shape:
