ET4020TP-0003 by Danfoss | Aeroquip | Die Package for -4, -6, -8, -12, -16, -20 Braided and -6, -8, -10, -12, -16 Spiral
ET4020TP-0003 by Danfoss | Aeroquip | Die Package for -4, -6, -8, -12, -16, -20 Braided and -6, -8, -10, -12, -16 Spiral
ET4020TP-0003 by Danfoss | Aeroquip | Die Package for -4, -6, -8, -12, -16, -20 Braided and -6, -8, -10, -12, -16 Spiral

ET4020TP-0003 by Danfoss | Aeroquip | Die Package for -4, -6, -8, -12, -16, -20 Braided and -6, -8, -10, -12, -16 Spiral

Sale price$2,777.83

Eaton Aeroquip ET1187, FT1380, & FT1380e Variable Crimp Machines & Accessories
Buy More, Save More!
Quantity Price Each
2–3 $2,611.16
4–9 $2,500.05
10+ $2,222.26
Discounts applied in cart/checkout.

Product Data:
Overview:

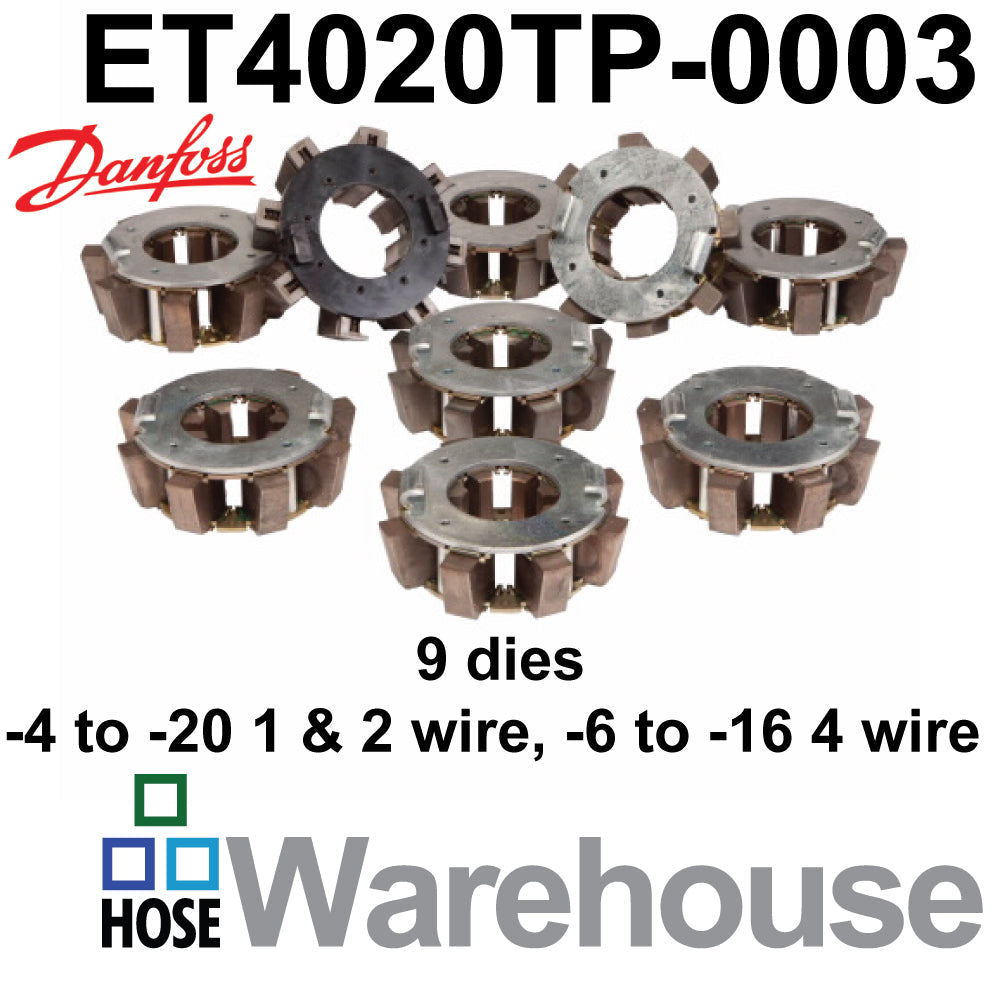

  • 9 Piece Die Set for Danfoss 1 1/4 capable Variable Crimpers ET1187, FT1380 and FT1380E

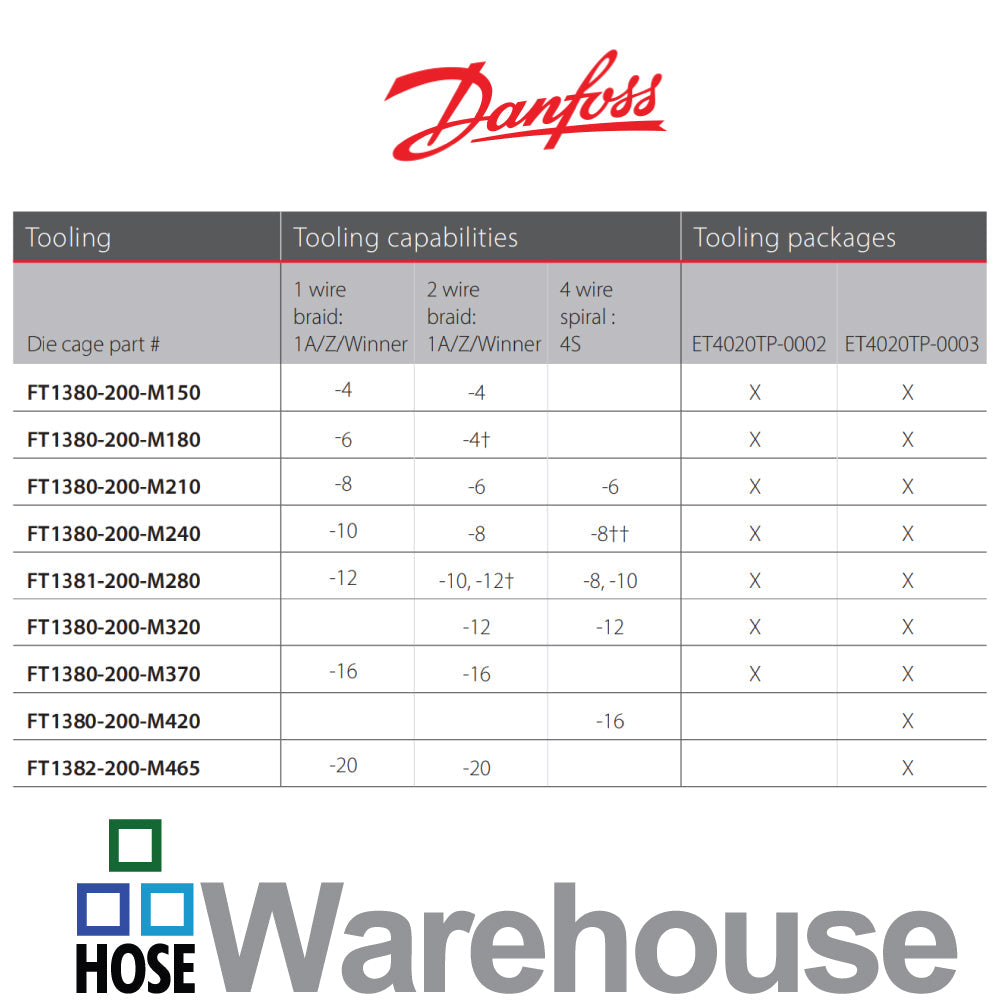

  • See Chart for Die Part Numbers
    Part No Description
    Crimp Machine Part Numbers
    ET1187-001 Bench Mount Machine, no pump, no tooling, base machine only (for premium hose GH681/H180, GH781/H280, GH493/H430)
    ET1187-002 Truck Mount Machine, no pump, no tooling, base machine only (for premium hose GH681/H180, GH781/H280, GH493/H430)
    ET1187-003 Bench Mount Machine, no pump, no tooling, base machine only (for standard hose EC115, EC215, EC415)
    ET1187-004 Truck Mount Machine, no pump, no tooling, base machine only (for standard hose EC115, EC215, EC415)
    ET1187C-0017 Bench Mount Bracket
    ET1187C-0019 Truck Mount Bracket
    Crimp Dies
    ET4020TP-0002 Die Package for -4, -6, -8, -12, -16 Braided and -6, -8, -10, -12 Spiral (Includes M150, M180, M210, M240, M280, M320, M370 Dies)
    FT1380-200-M420 Die for -16 Spiral
    FT1382-200-M465 Die for -20 Braided
    Pump Part Numbers*
    ET1000PK-001 2-Stage Hand Pump
    ET1000PK-002 Air/Hydraulic Pump
    ET1000PK-003 110 Volt Electric Pump
    ET1000PK-004 12 Volt DC Electric Pump
    Accessory Part Numbers
    T-400-G 1.5 oz. Tube, High Efficiency PTFE Grease
    FF91455 16 oz. Can, High Efficiency PTFE Grease
    * These pump kits include the pump, connecting hose assembly, and all of the adapters necessary to connect the pump to the ET1187 crimp machine.

    Danfoss (Eaton - Aeroquip)

    Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
