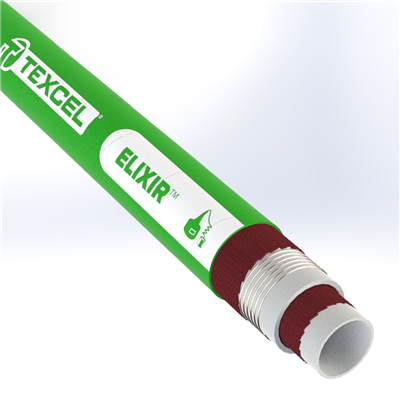

ELIX-.50-100 by Texcel | ELIXIR™ Series | Distillery Hose | 1/2" Hose ID | 150 PSI | 29 in/Hg Vacuum Rated | Green
Buy more, save moreDiscounts applied in cart/checkout.
Food & Sanitary Hose
ELIXIR™ Distillery Hose
Specially formulated for the suction and delivery of alcohols up to 96%, wine, beer, potable water and other related foodstuffs.
1
What is this hose used for?
The clear UHMWPE tube ensures food quality and is both odorless and does not alter taste. Its higher working temperature allows it to be sterilized with steam at 230°F for 30 minutes.
- Alcohols up to 96%
- Wine
- Beer
- Potable water
- Foodstuffs
2
What are the key specifications?
Tube
Clear, UHMWPE
Cover
Green, EPDM
Reinforcement
High strength synthetic plies with steel helix
Temperature Range
-40°F to +230°F
Safety Factor
3:1
Compliance
FDA, USDA compliant
Standards
Meets FDA title 21 part 177.2600(e) for liquid foods, BfR, KTW, EC 1935/2004
Branding
TEXCEL® ELIXIR™ DISTILLERY HOSE 150 PSI (10 BAR) W.P. TEMP. -4F TO 230F (-20C TO 100C) STERILIZATION AT 230F FOR 30 MINS FDA BFR KTW
3
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (psi) | Vacuum (in. Hg) | Bend Radius | Weight (lbs/ft) |
|---|---|---|---|---|---|---|
| ELIX-.50-100 | 1/2" | 58/64" | 150 | 29 | 2" | 0.39 |
| ELIX-.75-100 | 3/4" | 1-14/64" | 150 | 29 | 2.5" | 0.48 |
| ELIX-1.0-100 | 1" | 1-29/64" | 150 | 29 | 3.5" | 0.58 |
| ELIX-1.5-100 | 1-1/2" | 2" | 150 | 29 | 5" | 0.91 |
| ELIX-2.0-100 | 2" | 2-41/64" | 150 | 29 | 7.5" | 1.54 |
| ELIX-2.5-100 | 2-1/2" | 3-10/64" | 150 | 29 | 9" | 1.69 |
| ELIX-3.0-100 | 3" | 3-40/64" | 150 | 29 | 11" | 2.07 |
| ELIX-4.0-100 | 4" | 4-41/64" | 150 | 29 | 13" | 3.03 |
It is recommended that all food grade hose be thoroughly flushed prior to initial use.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
