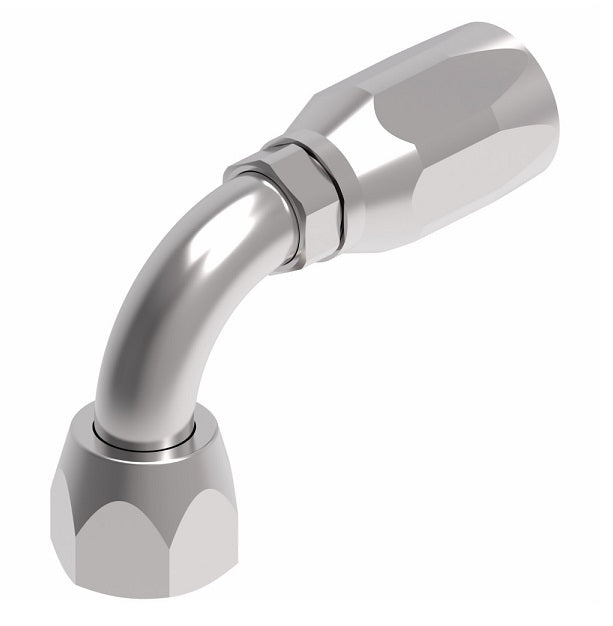

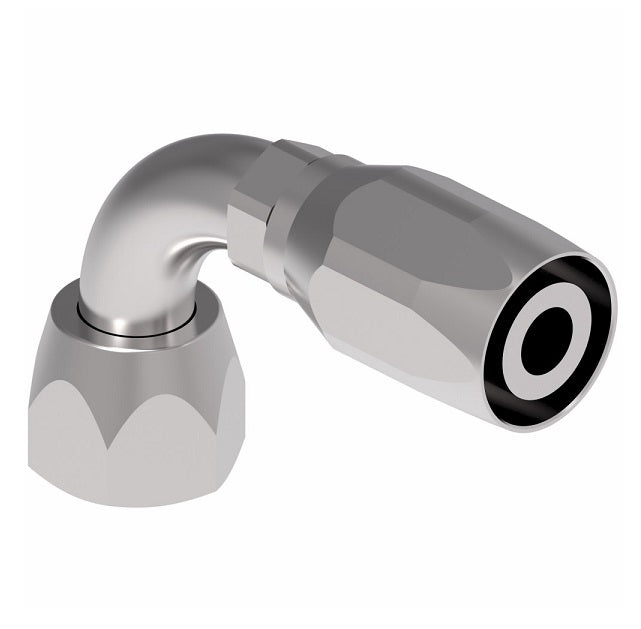

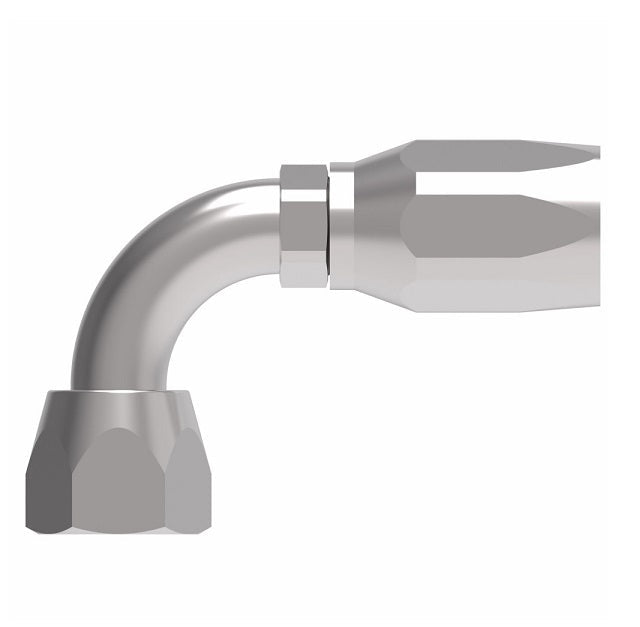

EJ5360-1212S by Danfoss | Female 37° JIC Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
EJ5360-1212S by Danfoss | Female 37° JIC Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
EJ5360-1212S by Danfoss | Female 37° JIC Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

EJ5360-1212S by Danfoss | Female 37° JIC Swivel 90° Tube Elbow Field Attachable Fitting | FC800 EverCool | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel

Sale price$69.10

Danfoss A/C & Refrigeration
FC800 EverCool Series - Female 37° JIC Swivel Field Attachable Fitting - 90° Elbow

For use with FC800 EverCool A/C & Refrigeration Hose.
Buy More, Save More!
Quantity Price Each
10–39 $64.95
40–79 $58.74
80+ $51.83
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 3/4in Female JIC
  • 3/4in Reusable Hose End
Material(s):
  • Steel
Steel
Part Number 		Hose Size Tube Size Thread Size A Hose cut-off
Factor 		Drop dia. Hole dia. Hex O-Ring ref
EJ5360-1212S 12" 12" 1-1/16x12 3.74" 2.17" 1.82" 0.47" 1-1/4" FF91026-12
EJ5360-1616S 16" 16" 1-5/16x12 3.56" 2.29" 2.39" 0.69" 1-1/2" FF91026-16
EJ5360-2020S 20" 20" 1-5/8x12 4.02" 2.65" 2.75" 0.95" 2" FF91026-20
