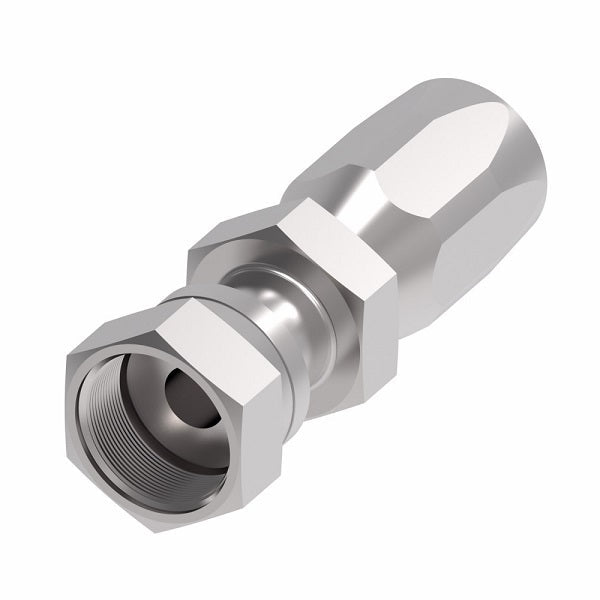

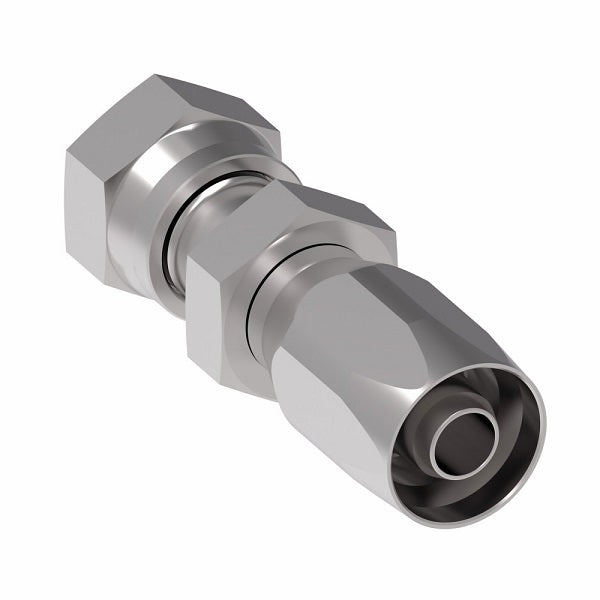

EJ5305-2020S by Danfoss | Female ORS Swivel Field Attachable Fitting | FC800 EverCool | -20 Female O-Ring Face Seal Swivel x -20 Reusable Hose End | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Tube Size | Thread Size | A | Hose cut-off Factor |
Hole dia. | Hex | O-Ring ref. |
| EJ5305-1212S | 12" | 12" | 1-3/16-12 | 3.66" | 2.14" | 0.47" | 1-1/4" | FF91026-12 |
| EJ5305-1616S | 16" | 16" | 1-7/16-12 | 3.38" | 2.22" | 0.69" | 1-5/8" | FF91026-16 |
| EJ5305-2020S | 20" | 20" | 1-11/16-12 | 3.63" | 2.31" | 0.95" | 1-7/8" | FF91026-20 |
| EJ5305-2424S | 24" | 24" | 2-12 | 3.79" | 2.41" | 1.16" | 2-1/4" | FF91026-24 |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
