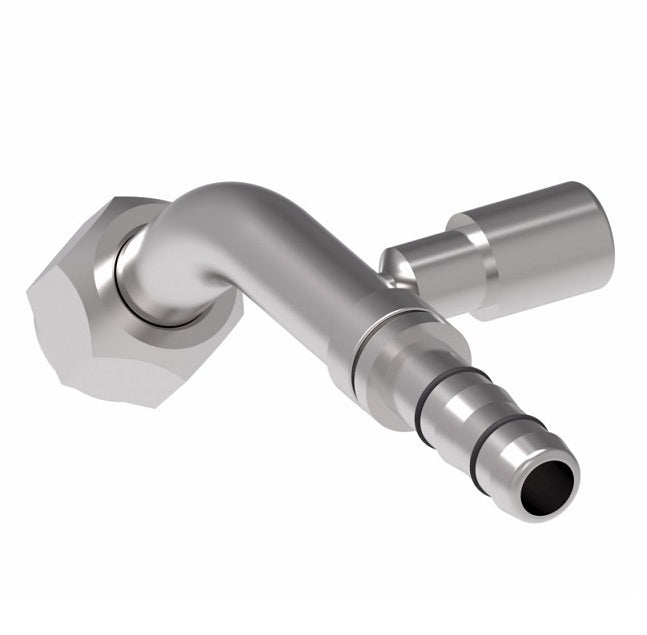

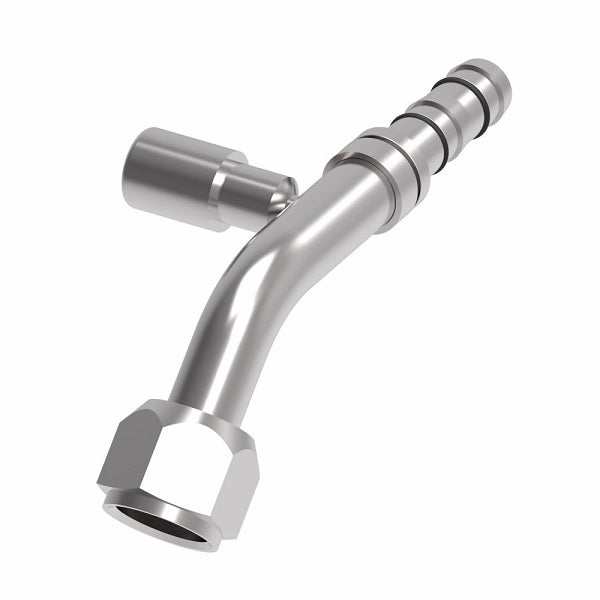

EJ3543-1010S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Short Pilot) with R134a Low Side Port (Rotated 270°) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -10 Hose Barb | Steel
EJ3543-1010S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Short Pilot) with R134a Low Side Port (Rotated 270°) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -10 Hose Barb | Steel
EJ3543-1010S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Short Pilot) with R134a Low Side Port (Rotated 270°) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -10 Hose Barb | Steel

EJ3543-1010S E-Z Clip System by Danfoss | Female O-Ring 45° Elbow (Short Pilot) with R134a Low Side Port (Rotated 270°) | A/C Refrigeration Fitting | -10 Female O-Ring Short Pilot x -10 Hose Barb | Steel

Sale price$43.52

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring (Short Pilot) with R134a Low Side Port (Rotated 270°) - 45° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Buy More, Save More!
Quantity Price Each
10–39 $40.91
40–79 $36.99
80+ $32.64
Discounts applied in cart/checkout.

Product Data:

Brand:
  • E-Z Clip
Shape:

45 Degree

Ends Configuration:
  • 5/8in Female O-Ring Short Pilot
  • 5/8in Hose Barb
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
EJ3543-1010S 7/8-14 -10 4.99" 3.44" 0.52" 1.19" 1.06" FF14173 22546-15 FF90178-15
