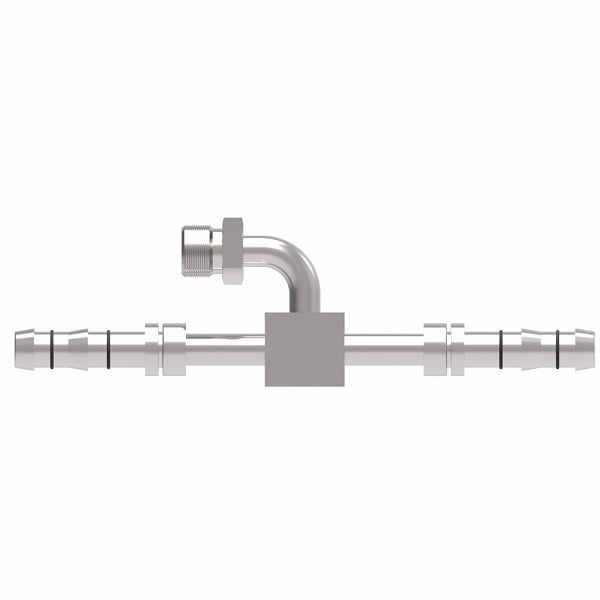

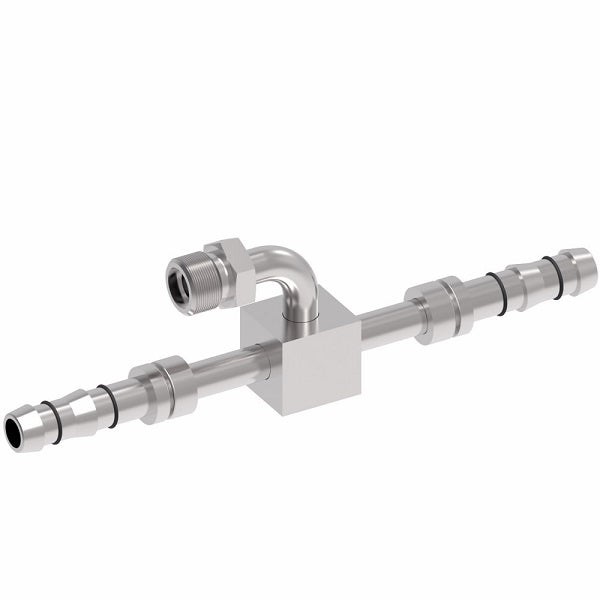

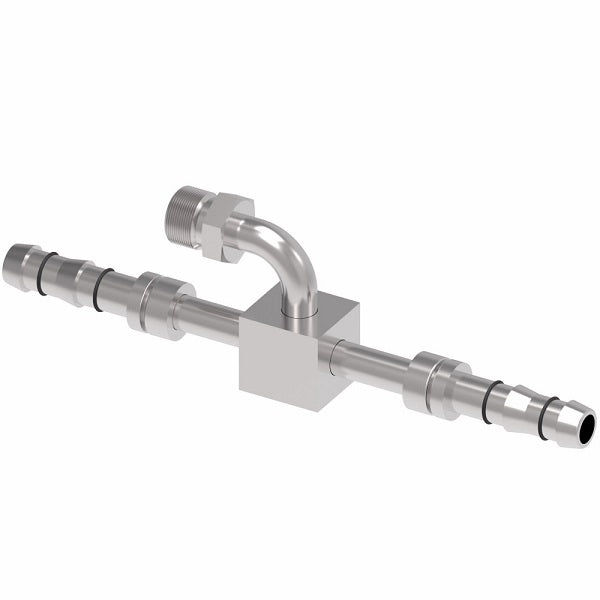

EJ3158-121616S E-Z Clip System by Danfoss | Male O-Ring Pilot Branch Connection Tee | A/C Refrigeration Fitting | -12 Male O-Ring Pilot x -16 Hose Barb x -16 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring Pilot Branch Connection - Tee
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $107.97 |
| 30–59 | $97.63 |
| 60+ | $86.15 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
Straight
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | ||||||||
| EJ3158-060808S | 5/8-18 | -08 | 6.86" | 1.88" | 1.14" | 0.69" | FF13820 | 22546-11 | FF90178-11 |
| EJ3158-080808S | 3/4-16 | -08 | 6.86" | 1.89" | 1.39" | 0.81" | FF13820 | 22546-13 | FF90178-13 |
| EJ3158-101212S | 7/8-14 | -12 | 5.67" | 1.26" | 1.49" | 0.94" | FF13822 | 22546-15 | FF90178-15 |
| EJ3158-121616S | 1-1/16-14 | -16 | 6.79" | 1.72" | 2.13" | 1.13" | FF14402 | 22546-17 | FF90178-17 |
