EC910-08C50 Aeroquip by Danfoss | SafeShield Waterblast 4-Spiral Wire Hydraulic Hose | 0.50" ID | 50ft Length
Aeroquip® by Danfoss

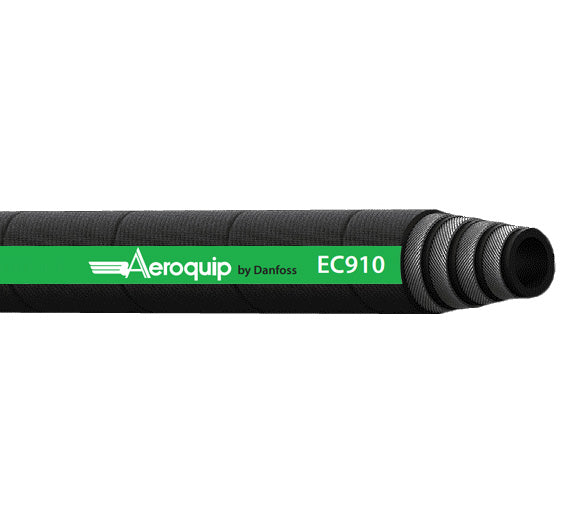

EC910 Series | SafeShield Waterblast 4-Spiral Wire Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $666.00 |
| 15–29 | $602.23 |
| 30+ | $531.38 |
Product Data:
16000
| Hose Properties: | |||
|---|---|---|---|
| Application: | Waterblast service with water, water-soap, emulsion. | SAE Rating: | Meets: ISO 7751, EN1829-2 (impulse) |
| Other Ratings: | N/A | Tube: | Synthetic Rubber |
| Reinforcement: | Heavy 4-Spiral Wire | Cover: | DURA-TUFF Synthetic Rubber Cover with color coded lay lines in accordance with WJTA (Water Jetting Technology Association) |
| Temperature Range: | -40°F to +200°F (-40°C to +93°C) Continuous Service Temperature Range: -14°F to +176°F (-10°C to +80°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| EC910-08C50 | 12 | 12,7mm | 0.50" | 24,6mm | 0.97" | 1100,0 bar | 16000 psi | 2750,0 bar | 40000 psi | 228,6mm | 9.00" | 1,12 kg/m | 0.75 lbs/ft |
| EC910-12C50 | 19 | 19,0mm | 0.75" | 32,8mm | 1.29" | 1000,0 bar | 14500 psi | 2500,0 bar | 36250 psi | 279,4mm | 11.00" | 1,74 kg/m | 1.17 lbs/ft |
| EC910-16C50 | 25 | 25,4mm | 1.00" | 39,9mm | 1.57" | 690,0 bar | 10000 psi | 1725,0 bar | 25000 psi | 304,8mm | 12.00" | 2,23 kg/m | 1.50 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
