EC881-12 Aeroquip by Danfoss | Dynamax Ultra-Performance Two Wire Braided Hydraulic Hose | SAE 100R16 | SAE 100R19 | 0.75" Hose ID
Minimum Order Quantity: 250 Units
Aeroquip® by Danfoss

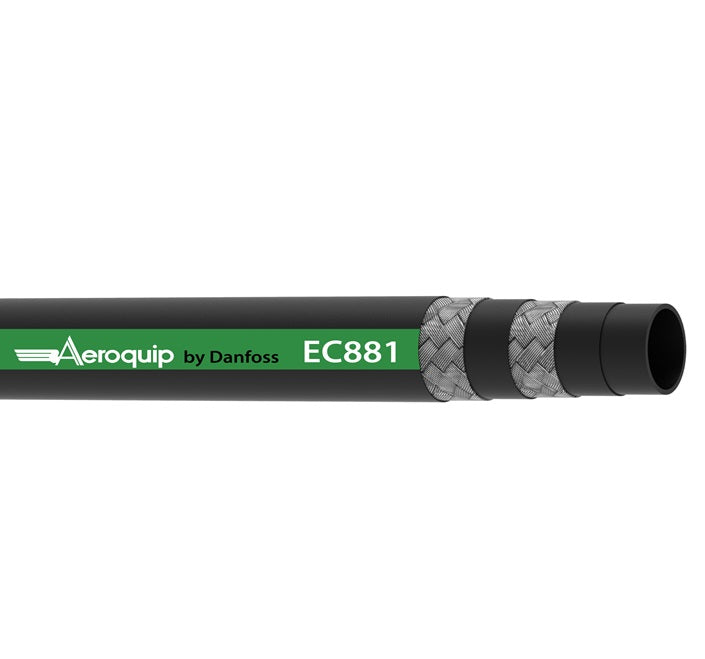

EC881 Series | Premium Dynamax Ultra-Performance Two Wire Braided Hydraulic Hose
This Dynamax ultra-performance hose with the Danfoss Dura-Pulse inner tube combines the lightweight flexibility of a two-wire braided hose with the pressure and performance of spiral 100R12 hoses (-16 and smaller).
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $15.24 |
| 40–79 | $13.78 |
| 80+ | $12.16 |
Product Data:
4785
| Hose Properties: | |||
|---|---|---|---|
| Application: | Hydraulic systems with petroleum and water-based fluids, for general industrial service | SAE Rating: | Exceeds: SAE 100R16 | SAE 100R19 | EN 857 2SC | ISO 18752 |
| Other Ratings: | ABS | DNV | MSHA | Tube: | Dura-Pulse Patented Tube |
| Reinforcement: | Two Wire braid | Cover: | DURA-TUFF™ Premium Abrasion |
| Operating Temperature Range: | -50°F to +260°F (-46°C to +126°C) -50ºF to +158ºF (-46ºC to +70ºC) for water based hyd. fluids +32ºF to 158ºF (0ºC to +70ºC) for water |
||
| Part Number | Hose ID | Nominal Hose OD | Working Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| EC881-4 | 6.4mm | 0.25" | 13.6mm | 0.54" | 450 bar | 6,525 psi | 1,800 bar | 26,100 psi | 33,0mm | 1.30" | 0.32 kg/m | 0.22 lbs/ft |
| EC881-5 | 8.0mm | 0.31" | 15.50mm | 0.61" | 400 bar | 5,800 psi | 1,600 bar | 23,200 psi | 38,10mm | 1.50" | - | - |
| EC881-6 | 9.5mm | 0.38" | 17.3mm | 0.68" | 400 bar | 5,800 psi | 1,600 bar | 23,200 psi | 42,0mm | 1.65" | 0.42 kg/m | 0.28 lbs/ft |
| EC881-8 | 12.7mm | 0.50" | 20.9mm | 0.82" | 360 bar | 5,220 psi | 1,440 bar | 20,880 psi | 60,0mm | 2.36" | 0.58 kg/m | 0.39 lbs/ft |
| EC881-10 | 15.9mm | 0.62" | 24.0mm | 0.94" | 350 bar | 5,075 psi | 1,400 bar | 20,300 psi | 68,0mm | 2.68" | 0.75 kg/m | 0.50 lbs/ft |
| EC881-12 | 19.0mm | 0.75" | 27.9mm | 1.10" | 330 bar | 4,785 psi | 1,320 bar | 19,140 psi | 80,0mm | 3.15" | 1.03 kg/m | 0.69 lbs/ft |
| EC881-16 | 25.4mm | 1.00" | 34.6mm | 1.36" | 280 bar | 4,060 psi | 1,120 bar | 16,240 psi | 150,0mm | 5.91" | 1.47 kg/m | 0.99 lbs/ft |
| EC881-20 | 31.8mm | 1.25" | 43.4mm | 1.71" | 172 bar | 2,500 psi | 688 bar | 9,980 psi | 210,0mm | 8.27" | 1.75 kg/m | 1.18 lbs/ft |
| EC881-24 | 38.1mm | 1.50" | 51.8mm | 2.04" | 138 bar | 2,000 psi | 552 bar | 8,000 psi | 250,0mm | 9.84" | 1.91 kg/m | 1.28 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
