EC850-16 Aeroquip by Danfoss | DYNAMAX 4-Spiral Wire Hydraulic Hose | SAE 100R15 | 1.00" ID
Aeroquip® by Danfoss

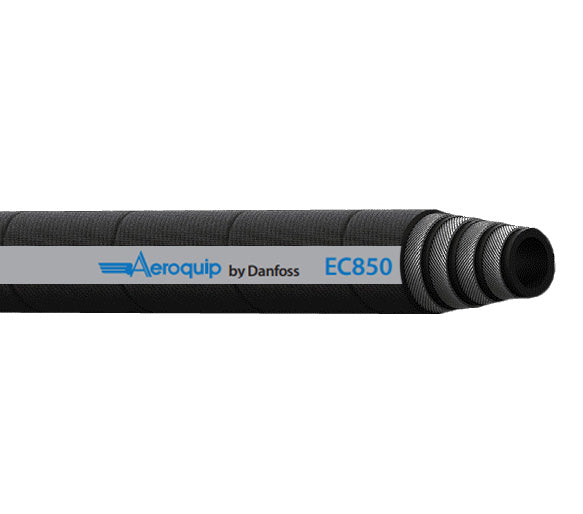

EC850 Series | DYNAMAX Spiral Wire Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $104.18 |
| 30–59 | $94.21 |
| 60+ | $83.12 |
Product Data:
7250
| Hose Properties: | |||
|---|---|---|---|
| Application: | Ultra high pressure. Hydraulic system with petroleum and water-glycol base fluids. Lubricants oils and water. |
SAE Rating: | Exceeds: SAE 100R15, ISO 18752 |
| Other Ratings: | MSHA Accepted | Tube: | Synthetic Rubber |
| Reinforcement: | 4-Spiral Wire in -10, -12, -16 6-Spiral Wire in -20 |
Cover: | Black highly abrasion resistant DURA-TUFF synthetic rubber. |
| Temperature Range: | (-40°F to +212°F) (-40°C to +100°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| EC850-12 | 19 | 19,1mm | 0.75" | 31,5mm | 1.24" | 500 bar | 7250 psi | 2000 bar | 29000 psi | 215,0mm | 8.46" | 1,52 kg/m | 1.01 lbs/ft |
| EC850-16 | 25 | 25,4mm | 1.00" | 39,4mm | 1.55" | 500 bar | 7250 psi | 2000 bar | 29000 psi | 270,0mm | 10.63" | 2,31 kg/m | 1.54 lbs/ft |
| EC850-20 | 31 | 31,8mm | 1.25" | 49,5mm | 1.95" | 500 bar | 7250 psi | 2000 bar | 29000 psi | 380,0mm | 14.96" | 4,01 kg/m | 2.69 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
