EC810-24 Aeroquip by Danfoss | ICE CHAMPION Premium Low Temperature 6-Spiral Wire Hydraulic Hose | SAE 100R15 | 1.50" ID
Aeroquip® by Danfoss

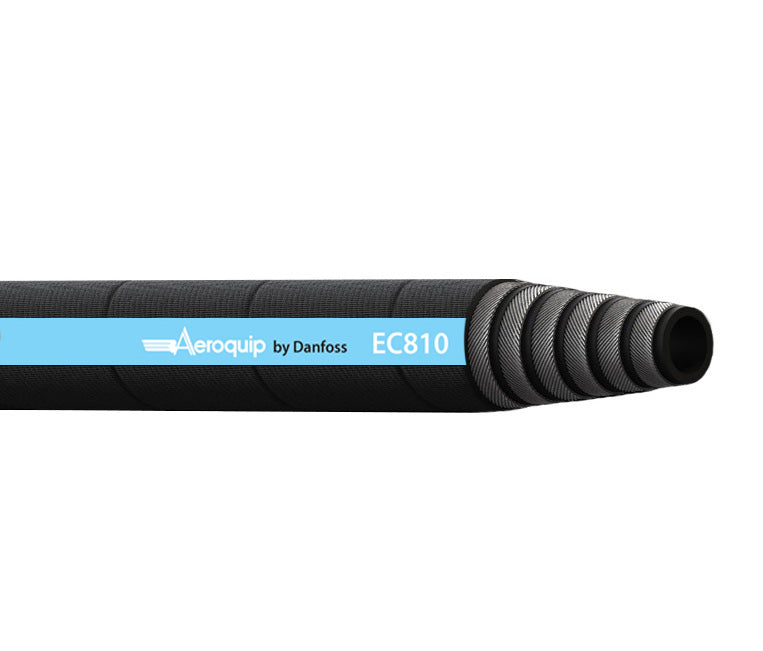

EC810 Series | ICE CHAMPION Premium Low Temperature Spiral Wire Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $97.92 |
| 30–59 | $88.54 |
| 60+ | $78.13 |
Product Data:
6100
| Hose Properties: | |||
|---|---|---|---|
| Application: | Fluids for low temperature applications. Hydraulic systems with petroleum-based fluids. |
SAE Rating: | Exceeds: SAE 100R15, EN 856 Type R15 performance |
| Other Ratings: | MSHA Accepted | Tube: | Synthetic Rubber |
| Reinforcement: | Heavy 4-Spiral Wire in -12 to -16 6-Spiral Wire in -20 to -32 |
Cover: | Synthetic Rubber |
| Temperature Range: | (-70°F to +212°F) (-57°C to +100°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| EC810-12 | 19 | 19,0mm | 0.75" | 32,2mm | 1.27" | 420 bar | 6100 psi | 1,680 bar | 24,360 psi | 280,0mm | 11.02" | 1,61 kg/m | 1.08 lbs/ft |
| EC810-16 | 25 | 25,4mm | 1.00" | 39,0mm | 1.54" | 420 bar | 6100 psi | 1680,0 bar | 24,360 psi | 340,0mm | 13.39" | 2,02 kg/m | 1.36 lbs/ft |
| EC810-20 | 31 | 31,8mm | 1.25" | 49,4mm | 1.95" | 420 bar | 6100 psi | 1,680 bar | 24,360 psi | 420,0mm | 16.54" | 3,55 kg/m | 2.39 lbs/ft |
| EC810-24 | 38 | 38,1mm | 1.50" | 57,3mm | 2.26" | 420 bar | 6100 psi | 1,680 bar | 24,360 psi | 510,0mm | 20.08" | 4,74 kg/m | 3.19 lbs/ft |
| EC810-32 | 51 | 50,8mm | 2.00" | 71,1mm | 2.80" | 350 bar | 5100 psi | 1400 bar | 20,305 psi | 630,0mm | 24.80" | 6,70 kg/m | 4.50 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
