EC215-12LRL Winner by Danfoss | EC215 | 2-Wire Hydraulic Hose | SAE 100R16 | -12 Hose
Priced BULK by the foot, to guarantee exact length you must contact us for a quote.

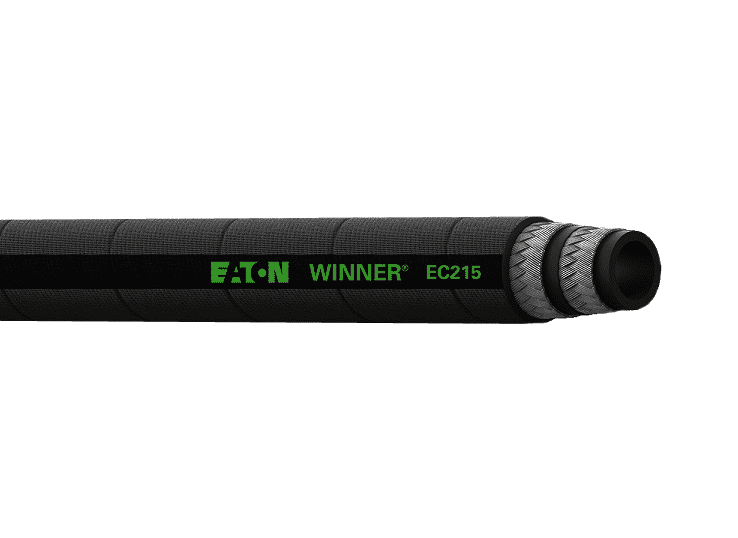

EC215 Eaton Aeroquip Winner Two Wire Braided Hose
Meets or Exceeds SAE 100R16 Type S, EN 857 TYPE 2SC, ISO 11237-1 Type 2SC| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $110.82 |
| 20–59 | $100.21 |
| 60+ | $88.42 |
Discounts applied in cart/checkout.
Product Data:
Series:
MAWP:
3125
SPECIFICATIONS
| Application: | Hydraulic system service with petroleum and waterbased fluids, for general industrial service. For more information on specific fluid applications and high temperature ratings see the Fluid Compatibility Chart link below. | ||
|---|---|---|---|
| Rating: | Meets EN 857 Type 2SC, MSHA Approved | Tube: | Synthetic rubber |
| Reinforcement: | Double wire braid | Cover: | Synthetic rubber |
| Temperature Range: | -40°C to +100°C (-40°F to +212°F) | Crimp Fittings: | Crimp Fittings, Two-piece Winner Fittings |
| Fluid Compatibility Chart: | Fluid Compatibility Chart | ||
| Part Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Minimum Burst Pressure | Minimum Bend Radius | Weight of Hose | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | bar | psi | bar | psi | mm | in | Kg/m | lbs/ft | |
| EC215-04LRL | 6.4 | 0.25 | 13.5 | 0.53 | 400 | 5,800 | 1,600 | 23,200 | 45 | 1.77 | 0.28 | 0.19 |
| EC215-06LRL | 9.5 | 0.38 | 17.5 | 0.69 | 330 | 4,800 | 1,320 | 19,200 | 65 | 2.56 | 0.41 | 0.28 |
| EC215-08LRL | 12.7 | 0.50 | 20.8 | 0.82 | 275 | 4,000 | 1,100 | 16,000 | 80 | 3.15 | 0.57 | 0.38 |
| EC215-10LRL | 15.9 | 0.62 | 24.0 | 0.94 | 250 | 3,650 | 1,000 | 14,600 | 90 | 3.54 | 0.68 | 0.46 |
| EC215-12LRL | 19.0 | 0.75 | 27.9 | 1.10 | 215 | 3,125 | 860 | 12,500 | 120 | 4.72 | 0.81 | 0.54 |
Note: Every attempt has been taken to provide accurate detailed usable information online, however please consult Eaton and Eaton Aeroquip handbooks for the most accurate and up to date data and specifics. All liability of Eaton products warrantied and guaranteed by manufacturer. Warning!
Eaton hose and fittings are engineered to match Eaton Aeroquip hose and fitting tolerances. The use of Eaton fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Eaton Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions. Bulk / By the Foot: We sell hose in Bulk Lengths unless you agree to purchase at a by the foot price as listed above in an options selector. This means we make every effort to provide exact single lengths, however with Eaton Aeroquip guidelines on bulk hose, your order may come in multiple lengths and may be plus or minus 10% of your bulk order. If you require ONE length in a specific length you must specify by the drop down selector that you will be paying a premium for a single length. There are no exceptions to the bulk guidelines and all prices listed on our website are in bulk price. By ordering through our website you agree that you have read, fully understand and agree to these terms and conditions.
