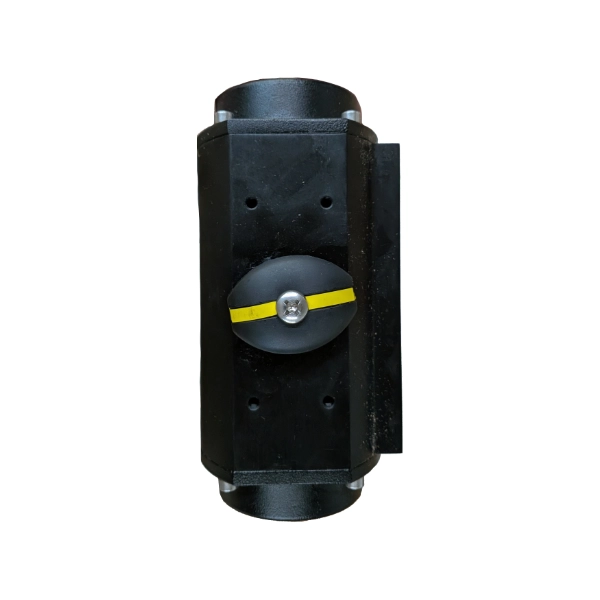

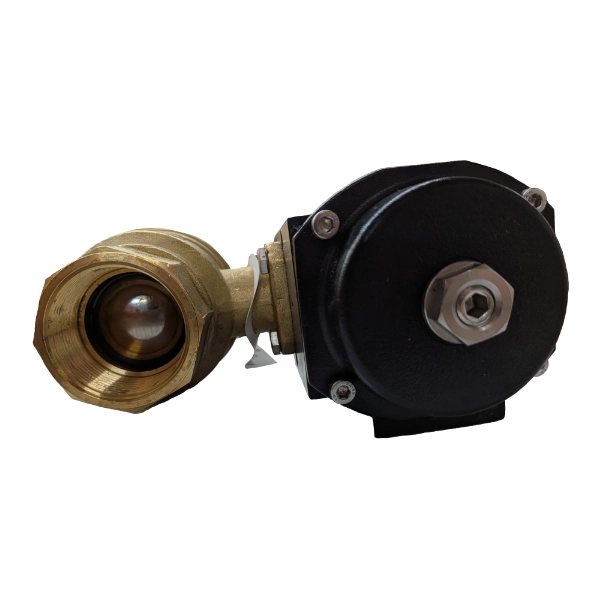

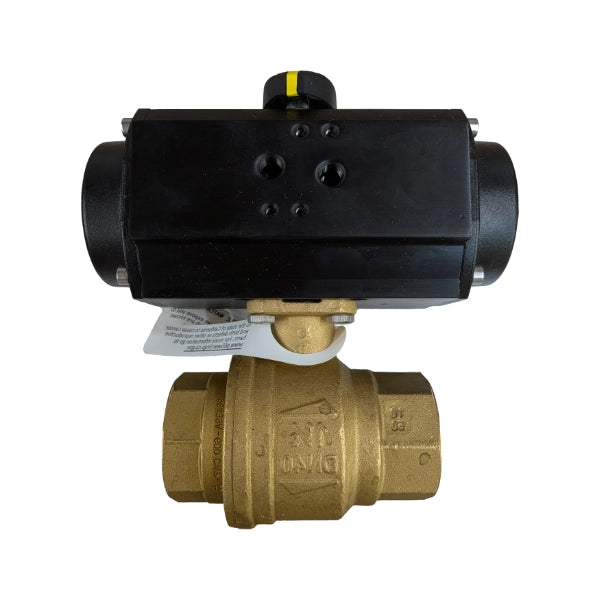

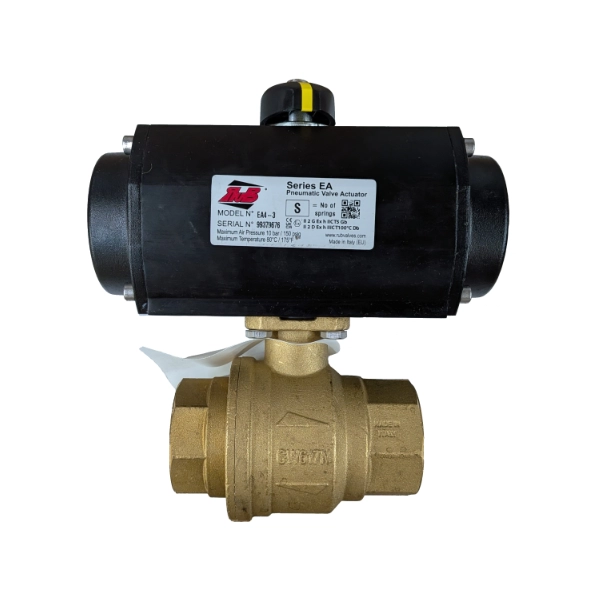

EA3D64H39A by RuB Inc. | Standard Actuation Kit | S64(39)LT Low Torque Ball Valve & EA Double Acting Pneumatic Actuator | Size 1-1/2" | Brass

EA3D64H39A by RuB Inc. | Standard Actuation Kit | S64(39)LT Low Torque Ball Valve & EA Double Acting Pneumatic Actuator | Size 1-1/2" | Brass

Sale price$399.23

RuB Inc. - Standard Actuation Kits - Pneumatic Actuation - Brass Ball Valves - S64(39)LT Low Torque Brass Ball Valve & EA Double Acting Pneumatic Actuator
Buy More, Save More!
Quantity Price Each
5–14 $375.28
15–29 $339.35
30+ $299.42
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • Brass
Assumptions:
  • 1. EA Pneumatic Actuator torques: EA-1 at 80 PSI at 71 in lb. EA-2 at 80 PSI at 193 in lb.
  • 2. Media in valve other than slurry/liquids with abrasive particles
  • 3. All RuB pneumatic acuator assemblies include appropriately sized linkage kit
  • 4. EA actuators with standard solenoid valves at 120VAC
  • 5. S64(39) and S64(LT) ball valves equipped with SS Trim. S31 and S74 brass ball valves with brass trim
  • 6. Link Kit consists of 4 SS screws, and bracket mounts when appropriate
  • 7. S64LT brass ball valves are full port, S31 brass ball valves are standard port
  • 8. Standard codes at 80 PSI
  • For other configurations, please contact Customer Service
Note:
  • 1. 0 to 230 PSI Delta P
Part Number Size
EA1D64F39A 1"
EA1D64G39A 1-1/4"
EA3D64H39A 1-1/2"
EA3D64I39A 2"

*Sizing based on Delta P < 90 PSI and 91-230 PSI (Maximum allowed for S64LT performance)

RuB Inc

RuB is a manufacturer of shut-off brass valves with focus on ball valves for gas, water, air, oil installations. Great emphasis is put on quality: ISO 9001 and PED compliance are guaranteed by well known organizations and many major international manufacturers rely on RuB. Our products are designed with long life and reliability criteria.
