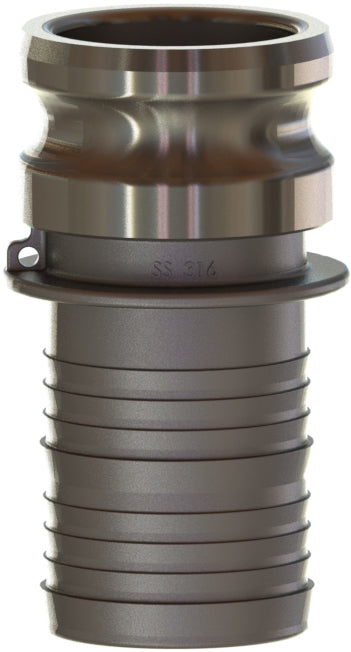

E-316-200 by Campbell Fittings | Standard Cobra Cam & Groove Coupling | Type E | 2" Adapter x 2" Hose Shank | 316 Stainless Steel

E-316-200 by Campbell Fittings | Standard Cobra Cam & Groove Coupling | Type E | 2" Adapter x 2" Hose Shank | 316 Stainless Steel

Sale price$49.06
Buy more, save moreDiscounts applied in cart/checkout.
Recommended Use:
  • Multi-purpose liquid, chemical, bulk handling
Recommended Hose Attachments:
  • Sleeves
  • Preformed Bands
Features and Benefits:
  • Designed for use with Campbell Interlocking Ferrules.
  • 360 interlock groove on fitting locks ferrule into place for the ultimate in holding power.
  • Shank and ferrule lengths are matched for performance and avoid potential hose tube or hose cover damage.
  • Serrations designed to grip, seal, and protect hose when crimped. Note: Traditional "two bump" designs are for banding, not crimping. NAHAD and Campbell do not recommend crimping on "two bump" shanks.
  • Crimped assemblies are low profile and eliminate sharp edges from clamp buckles.
  • Couplings and Goodyear Instalock Cam & Groove Couplings to keep your inventory as flexible as possible.
  • Designed to couple and interchanging made to ASTM F112, CID A-A-59326, MIL-C-27512.
Part Number Hose Size
E-316-75 3/4"
E-316-100 1"
E-316-125 1-1/4"
E-316-150 1-1/2"
E-316-200 2"
E-316-250 2-1/2"
E-316-300 3"
E-316-400 4"
E-316-500 5"
E-316-600 6"

Additional Product Data:

Shape:

Straight

Cam & Groove Type:

Type E

Ends Configuration:
  • 2in Female Cam & Groove
  • 2in Hose Barb

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
