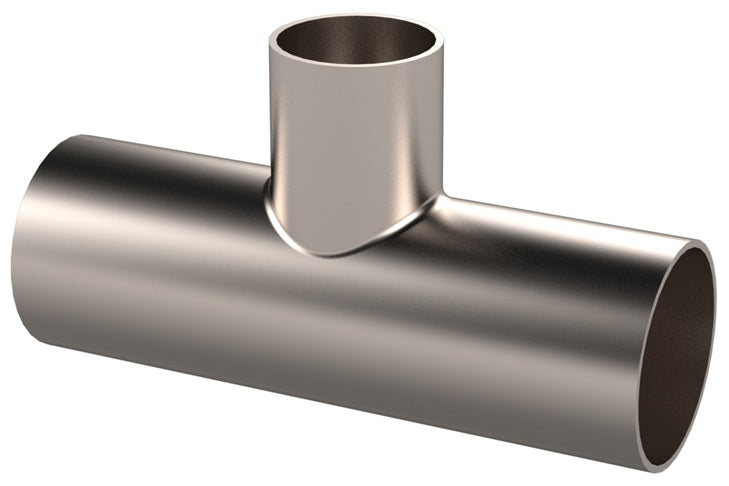

DVF-C250150G1W Dixon Valve Vacuum Weld Fitting - Weld Reducing Tee for D-TORR Vacuum Fitting - 2-1/2" x 1-1/2" OD - 304 Stainless Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Application: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Specifications: | |||
|
| Part Number | OD | Dimensions |
|
|---|---|---|---|
| A | B | ||
| DVF-C100075G1W | 1" x 3/4" | 1.88" | 2.13" |
| DVF-C150075G1W | 1-1/2" x 3/4" | 2.25" | 2.25" |
| DVF-C150100G1W | 1-1/2" x 1" | 2.25" | 2.38" |
| DVF-C200100G1W | 2" x 1" | 3.00" | 2.38" |
| DVF-C200150G1W | 2" x 1-1/2" | 3.00" | 2.38" |
| DVF-C250150G1W | 2-1/2" x 1-1/2" | 3.00" | 2.50" |
| DVF-C250200G1W | 2-1/2" x 2" | 3.00" | 2.75" |
| DVF-C300150G1W | 3" x 1-1/2" | 3.25" | 3.25" |
| DVF-C300200G1W | 3" x 2" | 3.25" | 3.00" |
| DVF-C300250G1W | 3" x 2-1/2" | 3.25" | 3.25" |
| DVF-C400150G1W | 4" x 1-1/2" | - | - |
| DVF-C400200G1W | 4" x 2" | 3.88" | 4.00" |
| DVF-C400250G1W | 4" x 2-1/2" | 3.88" | 3.75" |
| DVF-C400300G1W | 4" x 3" | 3.88" | 3.75" |
| DVF-C600300G1W | 6" x 3" | 5.00" | 4.75" |
| DVF-C600400G1W | 6" x 4" | 5.00" | 4.88" |
Dimensions are approximate and subject to change at any time without notice.
Additional Product Data:
Shape:
Tee
Material(s):
