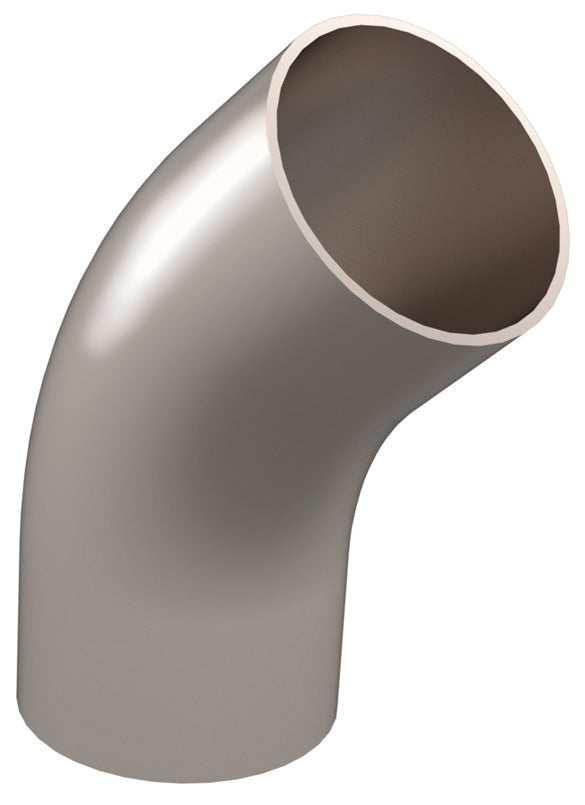

DVF-C200R1T Dixon Valve Vacuum Weld Fitting - Weld 45° Elbow with Tangent for D-TORR Vacuum Fitting - 2" OD - 316L Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Specifications: | |||
|
| Part Number | OD | Dimensions |
|||
|---|---|---|---|---|---|
| A | R | B | C | ||
| DVF-C075R1T | 3/4" | 0.76" | 1.00" | 0.065" | 0.75" |
| DVF-C100R1T | 1" | 1.19" | 1.50" | 0.065" | 1.00" |
| DVF-C150R1T | 1-1/2" | 1.63" | 2.25" | 0.065" | 1.50" |
| DVF-C200R1T | 2" | 2.31" | 3.00" | 0.065" | 2.00" |
| DVF-C250R1T | 2-1/2" | 3.00" | 3.75" | 0.065" | 2.50" |
| DVF-C300R1T | 3" | 3.68" | 4.50" | 0.065" | 3.00" |
| DVF-C400R1T | 4" | 4.81" | 6.00" | 0.083" | 4.00" |
| DVF-C600R1T | 6" | 7.33" | 9.00" | 0.109" | 6.00" |
Dimensions are approximate and subject to change at any time without notice.
