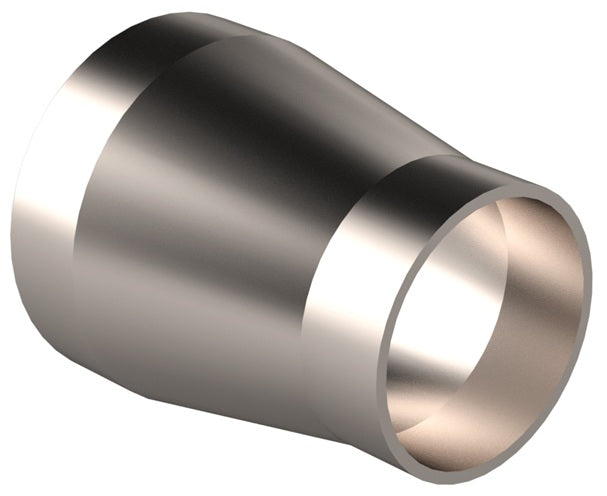

DVF-C200100R1U Dixon Valve Vacuum Weld Fitting - Concentric Reducer with Tangent for D-TORR Vacuum Fitting - 2" x 1" OD - 316L Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Specifications: | |||
|
| Part Number | OD | Dimensions |
||||
|---|---|---|---|---|---|---|
| A | B | C | D | E | ||
| DVF-C100075R1U | 1" x 3/4" | 1.38" | 0.50" | 1.00" | 0.75" | 0.065" |
| DVF-C150075R1U | 1-1/2" x 3/4" | 2.38" | 0.50" | 1.50" | 0.75" | 0.065" |
| DVF-C150100R1U | 1-1/2" x 1" | 2.38" | - | - | - | - |
| DVF-C200100R1U | 2" x 1" | 2.38" | 0.50" | 2.00" | 1.00" | 0.065" |
| DVF-C200150R1U | 2" x 1-1/2" | 2.38" | 0.50" | 2.00" | 1.50" | 0.065" |
| DVF-C250150R1U | 2-1/2" x 1-1/2" | 2.38" | 0.50" | 2.50" | 1.50" | 0.065" |
| DVF-C250200R1U | 2-1/2" x 2" | 2.38" | 0.50" | 2.50" | 2.00" | 0.065" |
| DVF-C300150R1U | 3" x 1-1/2" | 3.63" | 0.50" | 3.00" | 1.50" | 0.065" |
| DVF-C300200R1U | 3" x 2" | 3.63" | 0.50" | 3.00" | 2.00" | 0.065" |
| DVF-C300250R1U | 3" x 2-1/2" | 3.63" | 0.50" | 3.00" | 2.50" | 0.065" |
| DVF-C400200R1U | 4" x 2" | 3.63" | 0.50" | 4.00" | 2.00" | 0.065" |
| DVF-C400250R1U | 4" x 2-1/2" | 3.63" | 0.50" | 4.00" | 2.50" | 0.065" |
| DVF-C400300R1U | 4" x 3" | 3.63" | 0.50" | 4.00" | 3.00" | 0.065" |
Dimensions are approximate and subject to change at any time without notice.
