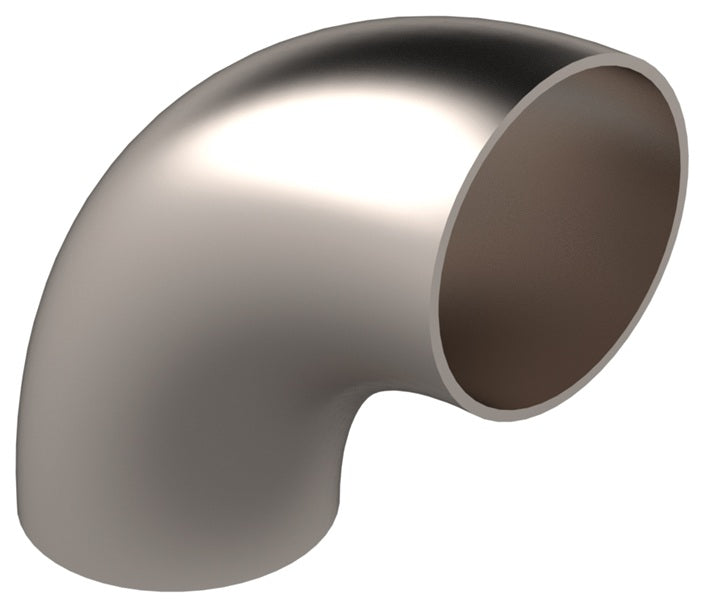

DVF-C100R1Q Dixon Valve Vacuum Weld Fitting - Weld 90° Elbow for D-TORR Vacuum Fitting - 1" OD - 316 Stainless Steel
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
| Application: | |||
|---|---|---|---|
|
|||
| Materials: | |||
|
|||
| Specifications: | |||
|
| Part Number | OD | Dimensions |
|||
|---|---|---|---|---|---|
| A | R | B | C | ||
| DVF-C050R1Q | 1/2" | 0.75" | 0.75" | 0.065" | 0.50" |
| DVF-C075R1Q | 3/4" | 1.00" | 1.00" | 0.065" | 0.75" |
| DVF-C100R1Q | 1" | 1.50" | 1.50" | 0.065" | 1.00" |
| DVF-C150R1Q | 1-1/2" | 2.25" | 2.25" | 0.065" | 1.50" |
| DVF-C200R1Q | 2" | 3.00" | 3.00" | 0.065" | 2.00" |
| DVF-C250R1Q | 2-1/2" | 3.75" | 3.75" | 0.065" | 2.50" |
| DVF-C300R1Q | 3" | 4.50" | 4.50" | 0.065" | 3.00" |
| DVF-C400R1Q | 4" | 6.00" | 6.00" | 0.083" | 4.00" |
| DVF-C600R1Q | 6" | 9.00" | 9.00" | 0.109" | 6.00" |
Dimensions are approximate and subject to change at any time without notice.
