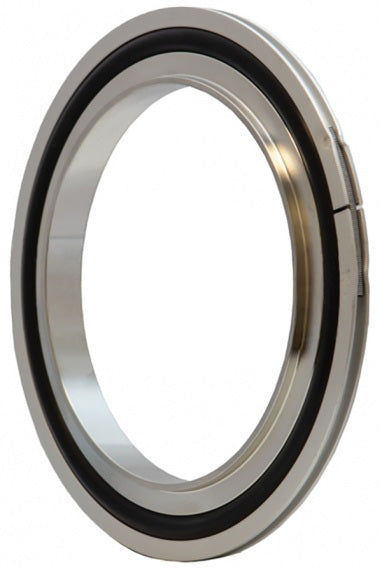

DVF-B63RE Dixon Valve ISO Centering Ring Assembly for D-TORR Vacuum Fitting - Flange Size: ISO63 - 316L Stainless Steel - FKM O-Ring
Dixon

DVF-B63RE Dixon Valve ISO Centering Ring Assembly for D-TORR Vacuum Fitting - Flange Size: ISO63 - 316L Stainless Steel - FKM O-Ring

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Each assembly contains two identical flanges and a centering ring assembly and is joined together by clamps.
  • Centering ring keeps the flanges in line and prevents the O-ring from being pushed in by atmospheric pressure.
  • Multiple clamps must be used to ensure a sturdy connection.
  • ISO fittings are compatible with other manufacturers' ISO-KF-QF vacuum flanges.
  • All fittings are IPA cleaned and bagged in a controlled environment.
Materials:
  • Clamps: aluminum
  • O-ring: FKM
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B C
DVF-B63RE ISO63 2.63" 2.74" 0.31"
DVF-B80RE ISO80 3.14" 3.25" 0.31"
DVF-B100RE ISO100 3.89" 4.00" 0.31"
DVF-B160RE ISO160 5.90" 6.01" 0.31"
DVF-B200RE ISO200 8.26" 8.37" 0.31"
