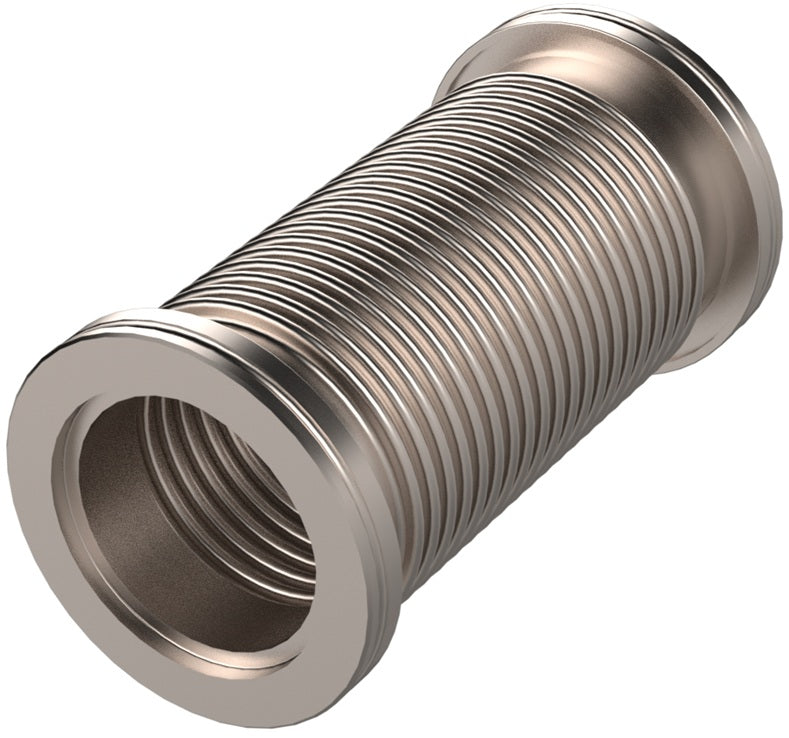

DVF-B160GG Dixon Valve ISO Flexible Bellow (Formed) for D-TORR Vacuum Fitting - Flange Size: ISO160 - 304 Stainless Steel

DVF-B160GG Dixon Valve ISO Flexible Bellow (Formed) for D-TORR Vacuum Fitting - Flange Size: ISO160 - 304 Stainless Steel

Sale price$518.01
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Each assembly contains two identical flanges and a centering ring assembly and is joined together by clamps.
  • Centering ring keeps the flanges in line and prevents the O-ring from being pushed in by atmospheric pressure.
  • Multiple clamps must be used to ensure a sturdy connection.
  • ISO fittings are compatible with other manufacturers' ISO-KF-QF vacuum flanges.
  • All fittings are IPA cleaned and bagged in a controlled environment.
Materials:
  • Clamps: aluminum
  • O-ring: FKM
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
Length Compressed Length A
DVF-B63GG ISO63 7.00" 6.00" 3.74"
DVF-B80GG ISO80 7.00" 6.00" 4.33"
DVF-B100GG ISO100 7.00" 6.00" 5.12"
DVF-B160GG ISO160 7.00" 6.00" 7.09"

Additional Product Data:

Color(s):
  • Metallic
Tubing Construction:
  • 304 Stainless Steel
