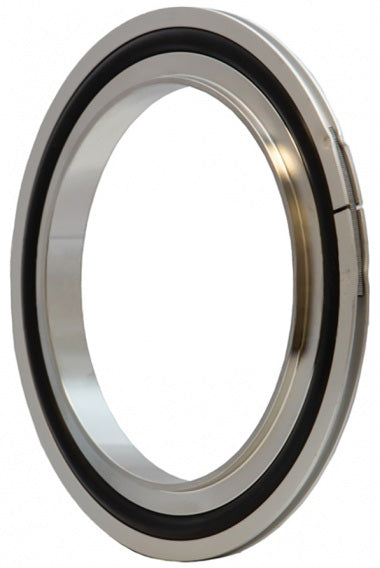

DVF-B160GE Dixon Valve ISO Centering Ring Assembly for D-TORR Vacuum Fitting - Flange Size: ISO160 - 304 Stainless Steel - FKM O-Ring

DVF-B160GE Dixon Valve ISO Centering Ring Assembly for D-TORR Vacuum Fitting - Flange Size: ISO160 - 304 Stainless Steel - FKM O-Ring

Sale price$71.30

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: ISO Centering Ring Assembly

304 Stainless Steel Centering Ring

FKM O-ring

Aluminum Spacer Ring

Vacuum sealing for 2-1/2" - 10" OD tubing in the semiconductor industry
Buy More, Save More!
Quantity Price Each
10–39 $67.02
40–79 $60.61
80+ $53.48
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Material(s):
  • 304 Stainless Steel
Seal Material(s):
  • Viton/FKM
Features:
  • Each assembly contains two identical flanges and a centering ring assembly and is joined together by clamps.
  • Centering ring keeps the flanges in line and prevents the O-ring from being pushed in by atmospheric pressure.
  • Multiple clamps must be used to ensure a sturdy connection.
  • ISO fittings are compatible with other manufacturers' ISO-KF-QF vacuum flanges.
  • All fittings are IPA cleaned and bagged in a controlled environment.
Materials:
  • Clamps: aluminum
  • O-ring: FKM
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A B C
DVF-B63GE ISO63 2.63" 2.74" 0.31"
DVF-B80GE ISO80 3.14" 3.25" 0.31"
DVF-B100GE ISO100 3.89" 4.00" 0.31"
DVF-B160GE ISO160 5.90" 6.01" 0.31"
DVF-B200GE ISO200 8.26" 8.37" 0.31"
