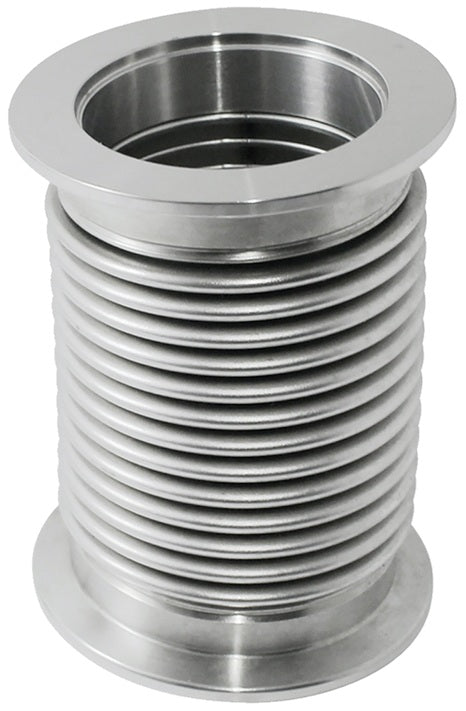

DVF-A50RG Dixon Valve KF Flex Bellow (Formed) for D-TORR Vacuum Fitting - Flange Size: KF50 - 316L Stainless Steel

DVF-A50RG Dixon Valve KF Flex Bellow (Formed) for D-TORR Vacuum Fitting - Flange Size: KF50 - 316L Stainless Steel

Sale price$224.28

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Flex Bellow (Formed) - 316L Stainless Steel

Vacuum sealing for 1/2" - 2" OD tubing in the semiconductor industry
Buy More, Save More!
Quantity Price Each
5–19 $210.82
20–59 $190.64
60+ $179.42
Discounts applied in cart/checkout.
Features:
  • KF assemblies contain two identical flanges and a centering ring assembly and are clamped together with a thumbscrew clamp. Coupling features prevent O-ring collapse and keep the assembly aligned.
  • KF flanges are compatible with other ISO-KF-QF vacuum flange manufacturers' components
  • All fittings are IPA cleaned and bagged in a controlled environment
Materials:
  • 316L Stainless Steel
Specifications:
  • Maximum temperature: 302°F (150°C)
  • Helium leakage testing to 1x10-8 Torr
  • Standards followed: ISO2681
Part Number Flange Size Dimensions
A Length
DVF-A16RG KF16 1.18" 3.20"
DVF-A25RG KF25 1.58" 4.20"
DVF-A40RG KF40 2.17" 4.20"
DVF-A50RG KF50 2.95" 4.20"

Product Data:

Shape:

Straight

Material(s):
  • 316L Stainless Steel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
