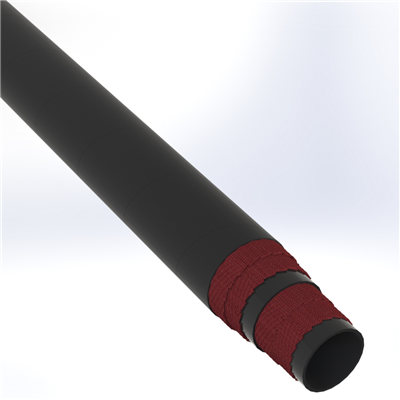

DREDGE-10.75-30N by Texcel | TEX-DREDGE Series | Dredge Sleeve | 10-3/4" Hose ID | 125 PSI | Black
Texcel
TEX-DREDGE Series | Dredge Sleeve
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $202.89 |
| 20–59 | $183.46 |
| 60+ | $161.88 |
Discounts applied in cart/checkout.
Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
Tubing Construction:
Cover Construction:
| Technical Data: | |||
|---|---|---|---|
| Description: | A rugged, abrasion-resistant tube and cover for flexible connections between pipes used in dredging applications. | Tube: | Black, 3/8", abrasion-resistant SBR compound |
| Cover: | Black, 3/32", weather and abrasion-resistant SBR | Reinforcement: | High tensile synthetic plies |
| Safety Factor: | 3:1 | Temperature: | -20°F to +180°F |
| Part Number | Hose ID | Hose OD | Tube Gauge | Working Pressure (psi) | Lbs./Ft. |
|---|---|---|---|---|---|
| DREDGE-6.63-50N | 6-5/8" | 8-39/64" | 3/8" | 125 psi | 6.59 lbs |
| DREDGE-8.63-50N | 8-5/8" | 10-42/64" | 3/8" | 125 psi | 9.23 lbs |
| DREDGE-10.75-30N | 10-3/4" | 12" | 3/8" | 125 psi | 10.98 lbs |
| DREDGE-12.75-30N | 12-3/4" | 14-3/64" | 3/8" | 125 psi | 13.24 lbs |
