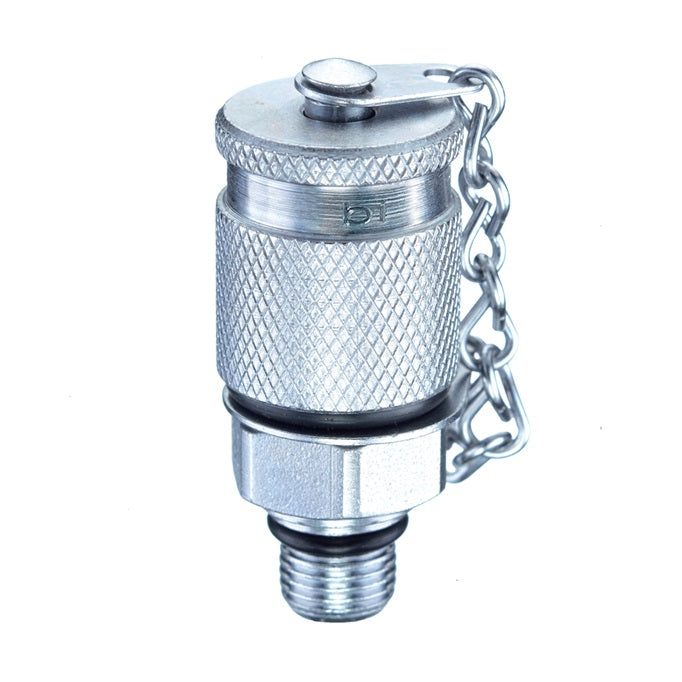

DP7005-08 by Brennan Inc. | 08mm Male Metric O-Ring Type A Test Coupling with Cap | Steel

DP7005-08 by Brennan Inc. | 08mm Male Metric O-Ring Type A Test Coupling with Cap | Steel

Sale price$37.22
Buy more, save moreDiscounts applied in cart/checkout.
Part Number Material Thread G Sealing H1
mm/in		 H2
mm/in		 Hex
DP7005-08 Steel M8 X 1 O-Ring Type A 38mm/1.5" 8.5mm/0.33" 17mm/0.67
DP7005-10 Steel M10 X 1 O-Ring Type A 38mm/1.5" 9.8mm/0.39" 17mm/0.67"
DP7005-12 Steel M12 X 1.5 Elastometric Seal 37mm/1.46" 12mm/0.47" 17mm/0.67"
DP7005-14 Steel M14 X 1.5 Metal Joint Type B 37mm/1.46" 12mm/0.47" 17mm/0.67"
DP7005-16 Steel M16 X 1.5 Metal Joint Type B 37mm/1.46" 12mm/0.47" 22mm/0.87"

Additional Product Data:

Ends Configuration:
  • 8mm Male Metric
Material(s):
  • Steel

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
