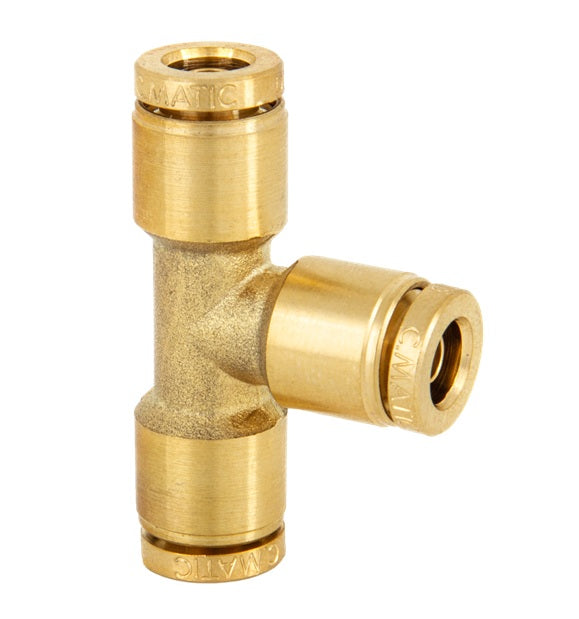

DOT-BRUNT-1010 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRUNT Series | DOT Air Brake Push-to-Connect Fitting | Union | Tee | 5/8" Tube OD x 0.433" Tube ID | Brass | (Pack of 10)
Kuri Tec® by Kuriyama
DOT Air Brake Push-to-Connect Fitting | DOT-BRUNT Series | Tee | Union | Male Push-to-Connect x Male Push-to-Connect x Male Push-to-Connect
Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $249.78 |
| 15–29 | $225.86 |
| 30+ | $199.29 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Tee
Ends Configuration:
Material(s):
Seal Material(s):
Specifications and Approvals:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
|||
| Recommended Tubing: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Tube OD 1 (in) |
Tube* ID 1 (in) |
Tube OD 2 (in) |
Tube* ID 2 (in) |
D2 (in) |
D3 (in) |
L1 (in) |
L2 (in) |
Weight Each (lbs) |
| DOT-BRUNT-0404 | 1/4" | 0.165" | 1/4" | 0.165" | 0.472" | 0.472" | 0.846" | 1.693" | 0.055 lbs |
| DOT-BRUNT-0604 | 3/8" | 0.244" | 1/4" | 0.165" | 0.630" | 0.472" | 0.945" | 2.008" | 0.106 lbs |
| DOT-BRUNT-0606 | 3/8" | 0.244" | 3/8" | 0.244" | 0.630" | 0.630" | 1.004" | 2.008" | 0.116 lbs |
| DOT-BRUNT-0806 | 1/2" | 0.362" | 3/8" | 0.244" | 0.787" | 0.630" | 1.102" | 2.220" | 0.178 lbs |
| DOT-BRUNT-0808 | 1/2" | 0.362" | 1/2" | 0.362" | 0.787" | 0.787" | 1.063" | 2.220" | 0.184 lbs |
| DOT-BRUNT-1010 | 5/8" | 0.433" | 5/8" | 0.433" | 0.945" | 0.945" | 1.398" | 2.795" | 0.359 lbs |
Note: The "Tube ID (in)" column heading refers to "Tube Support ID (in)"
