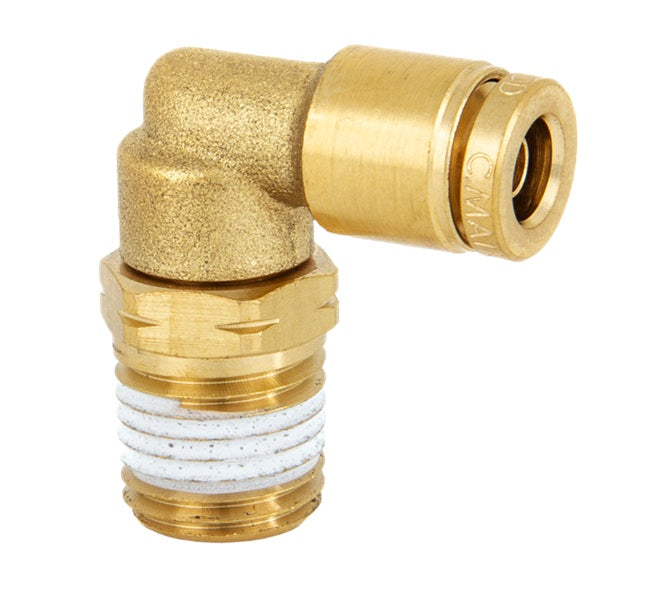

DOT-BRME90S-0804 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRME90S Series | DOT Air Brake Push-to-Connect Swivel Fitting | 90° Elbow | 1/2" Tube OD x 1/4" Male NPTF | Brass | (Pack of 25)
Kuri Tec® by Kuriyama
DOT Air Brake Push-to-Connect Swivel Fitting | DOT-BRME90S Series | 90° Elbow | Male Push-to-Connect x Male NPTF
Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $224.70 |
| 20–59 | $203.18 |
| 60+ | $179.28 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Seal Material(s):
Specifications and Approvals:
Special Properties:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
|||
| Recommended Tubing: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Tube OD (in) |
Tube* ID (in) |
D1 NPTF (in) |
D2 (in) |
L1 (in) |
L2 (in) |
L3 (in) |
HEX (mm) |
Weight Each (lbs) |
| DOT-BRME90S-0402 | 1/4" | 0.165" | 1/8" | 0.472" | 0.335" | 0.835" | 0.925" | 1/2" | 0.046 lbs |
| DOT-BRME90S-0404 | 1/4" | 0.165" | 1/4" | 0.472" | 0.512" | 1.031" | 0.925" | 9/16" | 0.056 lbs |
| DOT-BRME90S-0406 | 1/4" | 0.165" | 3/8" | 0.472" | 0.512" | 1.051" | 0.925" | 11/16" | 0.071 lbs |
| DOT-BRME90S-0602 | 3/8" | 0.244" | 1/8" | 0.630" | 0.335" | 0.945" | 1.063" | 11/16" | 0.091 lbs |
| DOT-BRME90S-0604 | 3/8" | 0.244" | 1/4" | 0.630" | 0.512" | 1.122" | 1.063" | 11/16" | 0.091 lbs |
| DOT-BRME90S-0606 | 3/8" | 0.244" | 3/8" | 0.630" | 0.512" | 1.122" | 1.063" | 11/16" | 0.091 lbs |
| DOT-BRME90S-0608 | 3/8" | 0.244" | 1/2" | 0.630" | 0.669" | 1.339" | 1.063" | 7/8" | 0.091 lbs |
| DOT-BRME90S-0804 | 1/2" | 0.362" | 1/4" | 0.787" | 0.512" | 1.260" | 1.169" | 13/16" | 0.162 lbs |
| DOT-BRME90S-0806 | 1/2" | 0.362" | 3/8" | 0.787" | 0.512" | 1.260" | 1.169" | 13/16" | 0.151 lbs |
| DOT-BRME90S-0808 | 1/2" | 0.362" | 1/2" | 0.787" | 0.669" | 1.437" | 1.169" | 7/8" | 0.181 lbs |
| DOT-BRME90S-1008 | 5/8" | 0.433" | 1/2" | 0.945" | 0.669" | 1.555" | 1.417" | 7/8" | 0.241 lbs |
| DOT-BRME90S-1012 | 5/8" | 0.433" | 3/4" | 0.945" | 0.669" | 1.555" | 1.417" | 1-1/16" | 0.275 lbs |
| DOT-BRME90S-1208 | 3/4" | 0.559" | 1/2" | 1.063" | 0.669" | 1.555" | 1.496" | 7/8" | 0.288 lbs |
| DOT-BRME90S-1212 | 3/4" | 0.559" | 3/4" | 1.063" | 0.669" | 1.555" | 1.496" | 1-1/16" | 0.325 lbs |
Note: The "Tube ID (in)" column heading refers to "Tube Support ID (in)"
