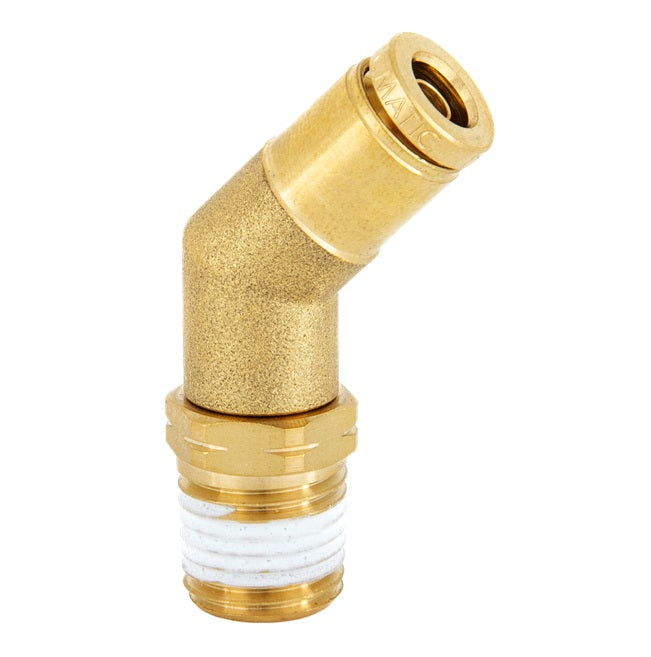

DOT-BRME45S-0808 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRME45S Series | DOT Air Brake Push-to-Connect Swivel Fitting | 45° Elbow | 1/2" Tube OD x 1/2" Male NPTF | Brass | (Pack of 25)
Kuri Tec® by Kuriyama
DOT Air Brake Push-to-Connect Swivel Fitting | DOT-BRME45S Series | 45° Elbow | Male Push-to-Connect x Male NPTF
Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.
Package Quantity: 10 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $518.10 |
| 15–29 | $468.49 |
| 30+ | $413.38 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Seal Material(s):
Specifications and Approvals:
Special Properties:
Compatible Series:
| Applications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
|||
| Specifications: | |||
|
|||
| Recommended Tubing: | |||
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Tube OD (in) |
Tube* ID (in) |
D1 NPTF (in) |
D2 (in) |
L1 (in) |
L2 (in) |
L3 (in) |
HEX (mm) |
Weight Each (lbs) |
| DOT-BRME45S-0402 | 1/4" | 0.165" | 1/8" | 0.472" | 0.335" | 0.906" | 0.886" | 1/2" | 0.059 lbs |
| DOT-BRME45S-0404 | 1/4" | 0.165" | 1/4" | 0.472" | 0.512" | 1.102" | 0.886" | 9/16" | 0.072 lbs |
| DOT-BRME45S-0604 | 3/8" | 0.244" | 1/4" | 0.630" | 0.512" | 1.142" | 1.024" | 11/16" | 0.116 lbs |
| DOT-BRME45S-0606 | 3/8" | 0.244" | 3/8" | 0.630" | 0.512" | 1.161" | 1.024" | 11/16" | 0.119 lbs |
| DOT-BRME45S-0608 | 3/8" | 0.244" | 1/2" | 0.630" | 0.669" | 1.378" | 1.024" | 7/8" | 0.159 lbs |
| DOT-BRME45S-0806 | 1/2" | 0.362" | 3/8" | 0.787" | 0.512" | 1.260" | 1.130" | 13/16" | 0.172 lbs |
| DOT-BRME45S-0808 | 1/2" | 0.362" | 1/2" | 0.787" | 0.669" | 1.437" | 1.130" | 7/8" | 0.200 lbs |
Note: The "Tube ID (in)" column heading refers to "Tube Support ID (in)"
