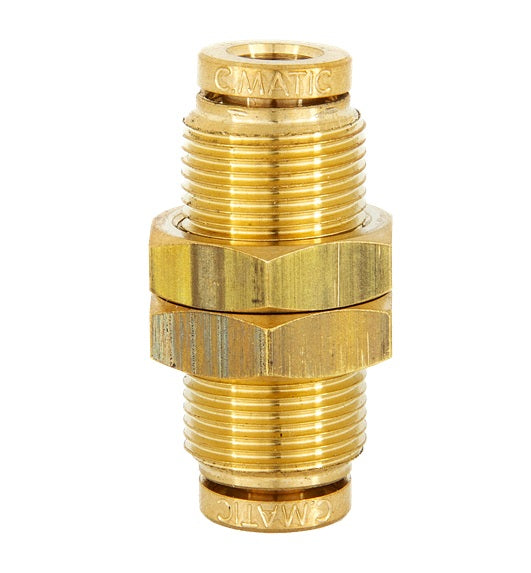

DOT-BRBH-0404 Kuri-Tec ENDURE™ by Kuriyama | DOT-BRBH Series | DOT Air Brake Push-to-Connect Fitting | Bulkhead Union | 1/4" Tube OD x 0.165" Tube ID | Brass | (Pack of 25)

$202.71

Kuri Tec® by Kuriyama
DOT Air Brake Push-to-Connect Fitting | DOT-BRBH Series | Bulkhead Union | Male Push-to-Connect x Male Push-to-Connect

Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.

Package Quantity: 10 Units

Quantity:

Discounts applied in cart/checkout.

Product Data:

Brand:

Series:

Shape:

Straight

Applications:
Pneumatic circuits for truck and trailers: air suspension, braking systems, transmissions, locking doors and windows, seat adjustment, instrumentation, air conditioning systems, horn, wiper motors, valves, cylinders and accessories. Suitable for all air assisted applications except those designed for use between frame and axle or between towed and towing vehicles.
Construction:
Brass housing. Polyethylene holding ring. Nitrile (NBR) seals.
Specifications:
Temperature Range: -58°F (-50°C) to +212°F (+100°C) Max. Pressure: 290 PSI Vacuum Rating: 29 inHg
Recommended Tubing:
Designed to work with Endure™ Air Brake tubing or other tubing that complies with DOT FMVSS 106 and meets the performance requirements of SAE J844.

Note: The "Tube ID (in)" column heading refers to "Tube Support ID (in)"
