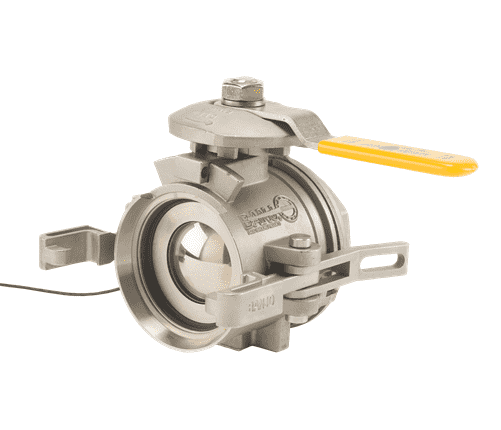

DM220DBSST by Banjo | Dry-Mate® Dry Disconnects | 2" Full Port Female BSP Threads (BSPP) x Female Dry-Mate | PTFE Ball Seats | 300°F | 300 PSI | 316 Stainless Steel

DM220DBSST by Banjo | Dry-Mate® Dry Disconnects | 2" Full Port Female BSP Threads (BSPP) x Female Dry-Mate | PTFE Ball Seats | 300°F | 300 PSI | 316 Stainless Steel

Sale price$1,883.37

Banjo Dry Disconnects - 2" Stainless Steel Full Port Female British Standard Pipe Threads (BSPP) x Female Dry-Mate - PTFE Ball Seats
Buy More, Save More!
Quantity Price Each
4–7 $1,770.37
8–14 $1,695.03
15+ $1,506.70
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 2in Female BSPP
  • 2in Female Dry-Mate Dry Disconnect
Material(s):
  • 316 Stainless Steel
Applications:
  • Agriculture
  • Chemical processing
  • Industrial
  • Pharmaceutical
Description:
  • 100% PTFE ball seats.
  • 20° rotation either direction to ease coupling male and female halves.
  • 300°F maximum operating temperature.
  • 316 stainless steel construction.
  • Filled valve for no product residue.
  • FKM (viton type) standard, EPDM face seals available.
  • Sizes: 2" Full Port (Female NPT & BSP Threads)
  • Spillage data: Less than 1cc.
  • When Dry-Mate halves are apart, handles cannot be turned to open position.
  • When liquid is flowing, Dry-Mate halves cannot be uncoupled without turning handles to closed position.

Part Number Description Max PSI
DM220DB 2" Polypropylene Full Port Female BSP x Female Dry-Mate 300 PSI

Banjo

Banjo is a world-class producer of a wide range of mechanical and electrical valves, fittings, and self-priming centrifugal pumps for agriculture and numerous industrial applications that ship to every corner of the globe. Banjo employs an array of molding presses, numerous machining and assembly cells, and an optimized logistics system empowering our production and shipping operations.
