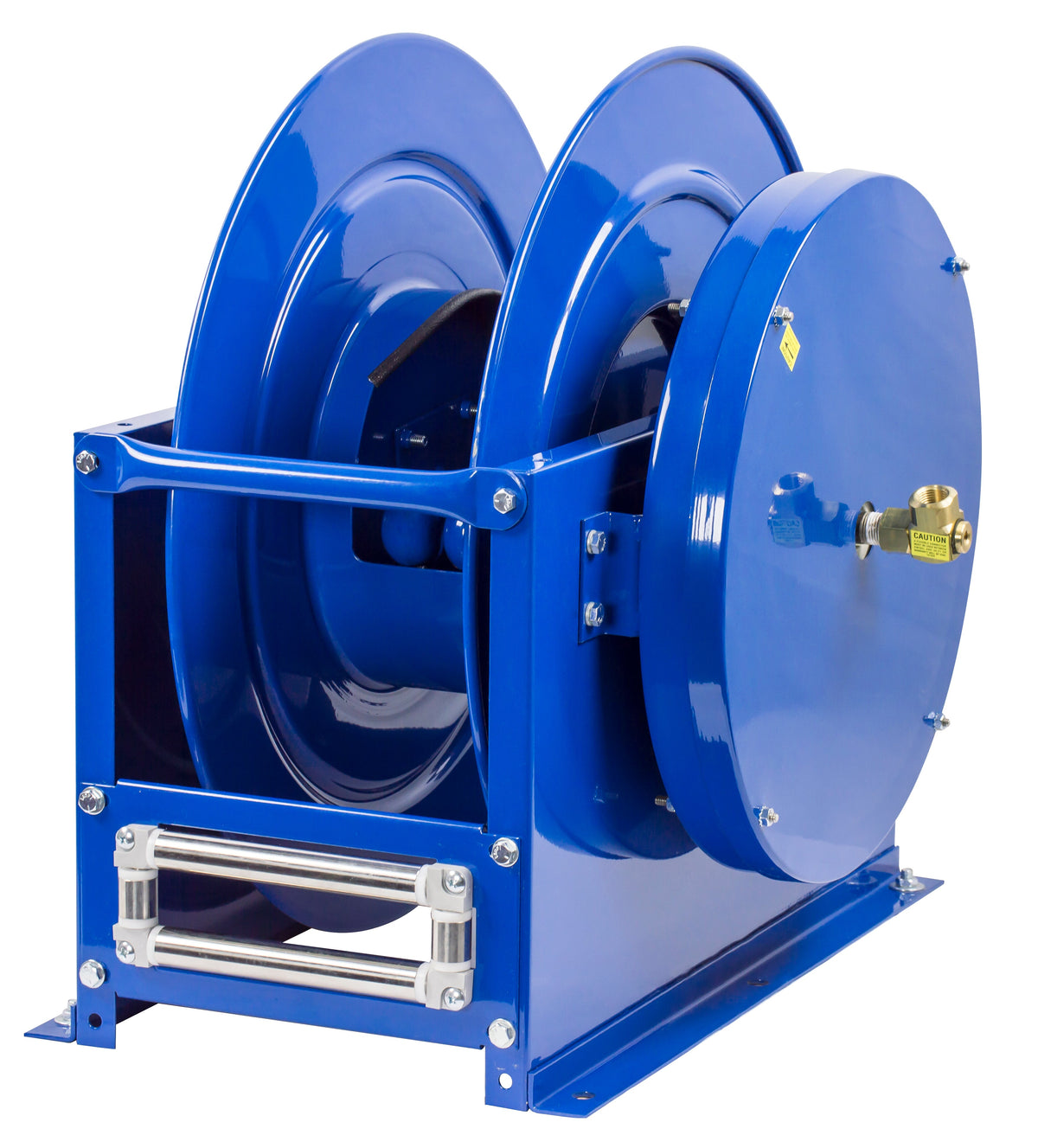

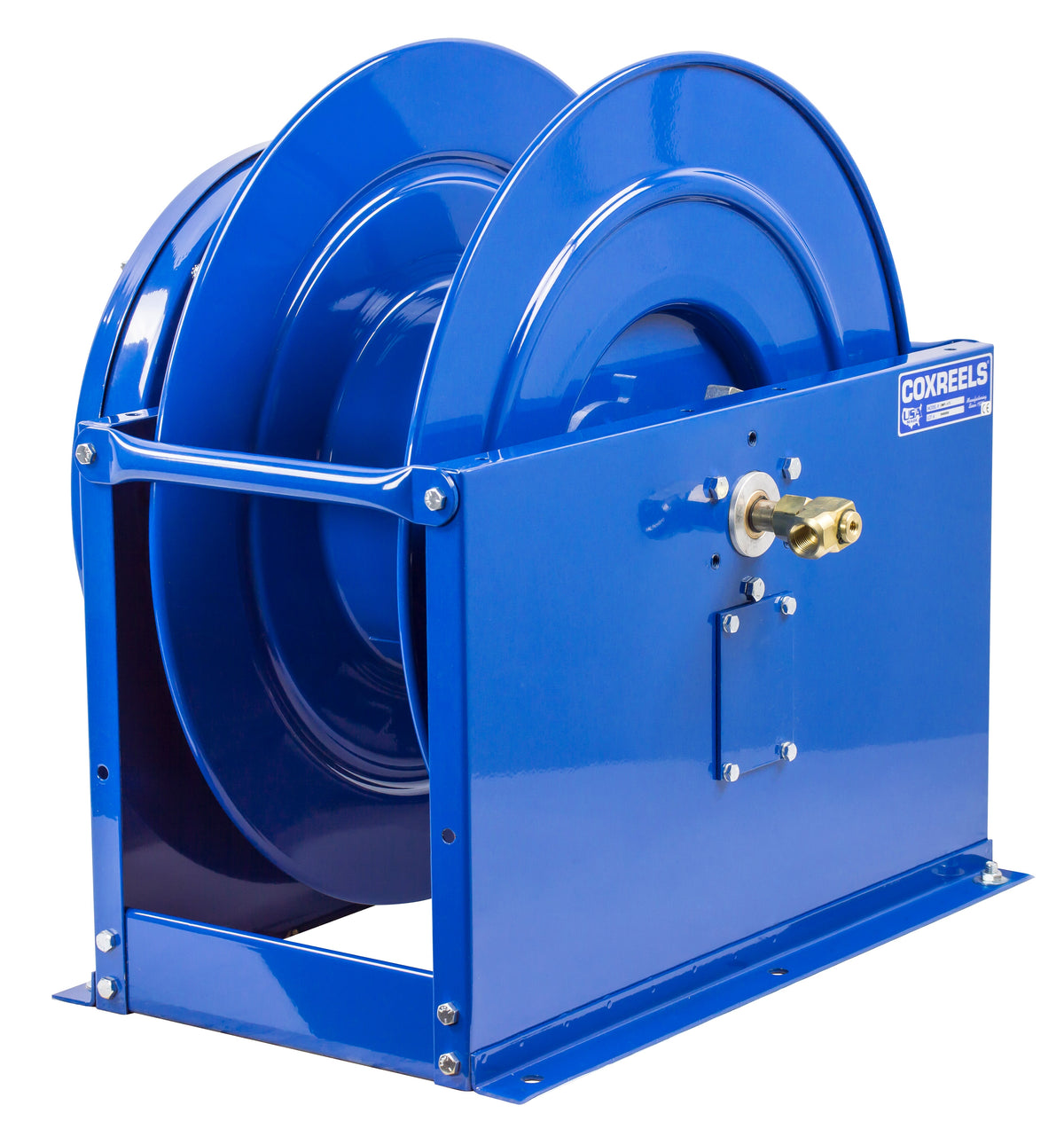

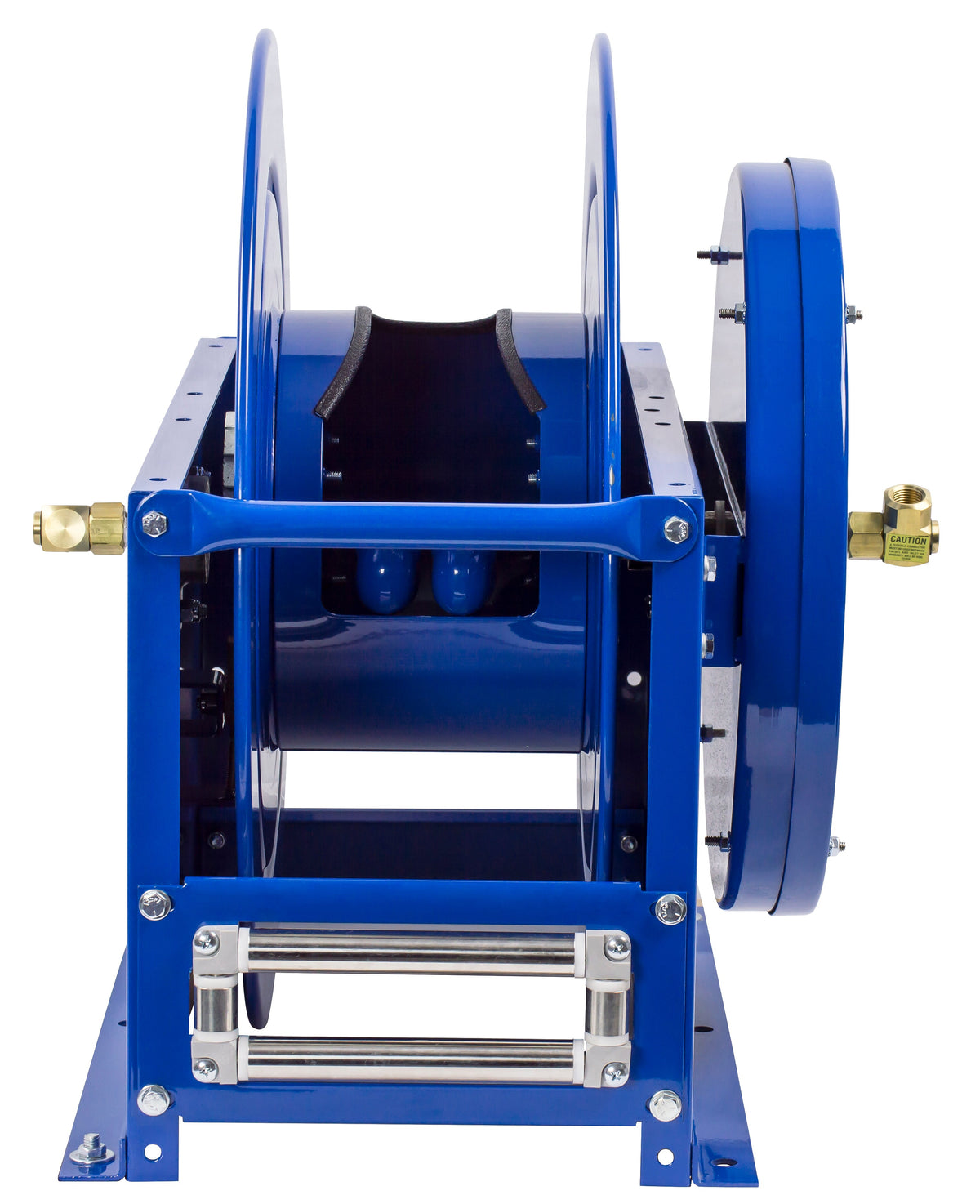

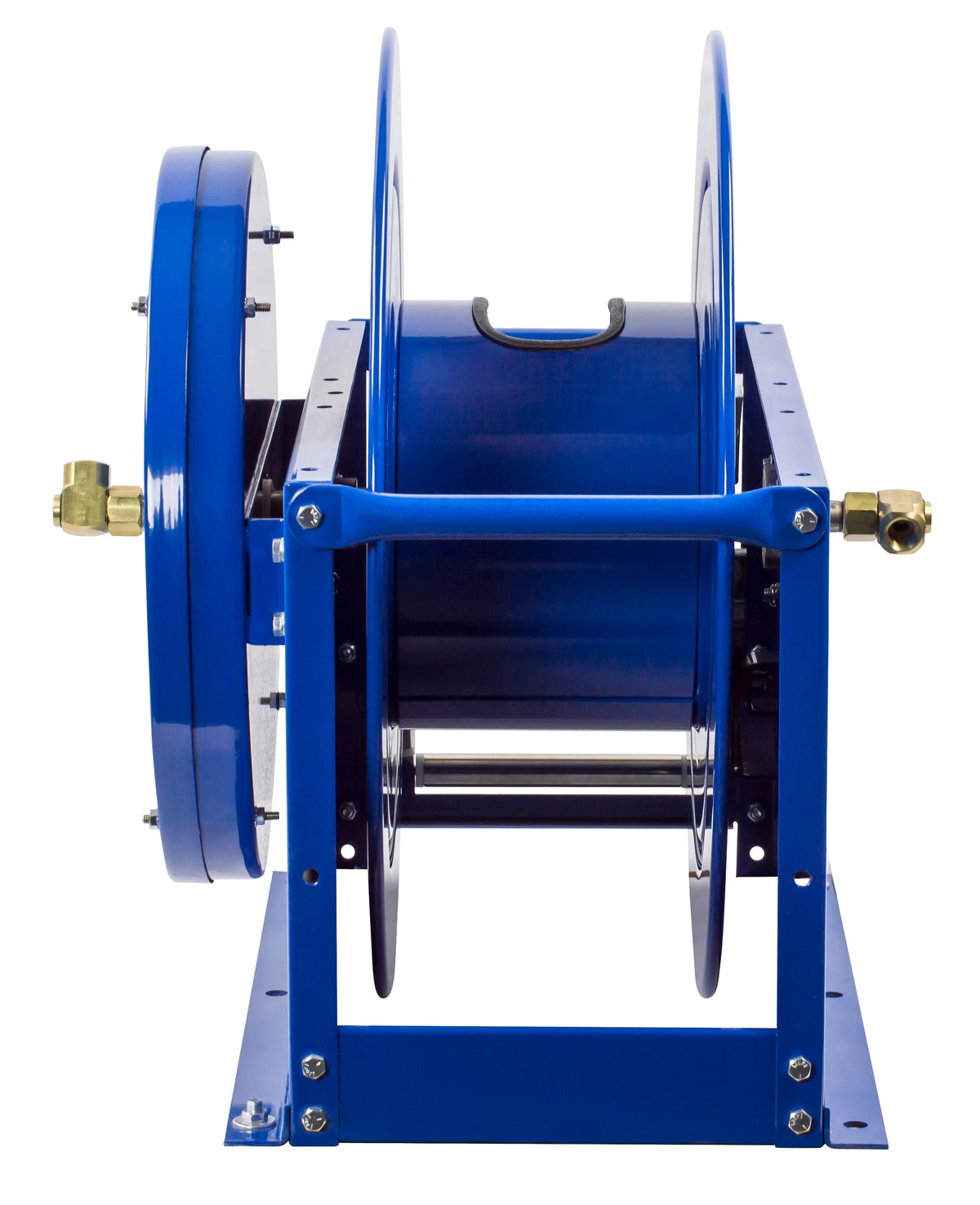

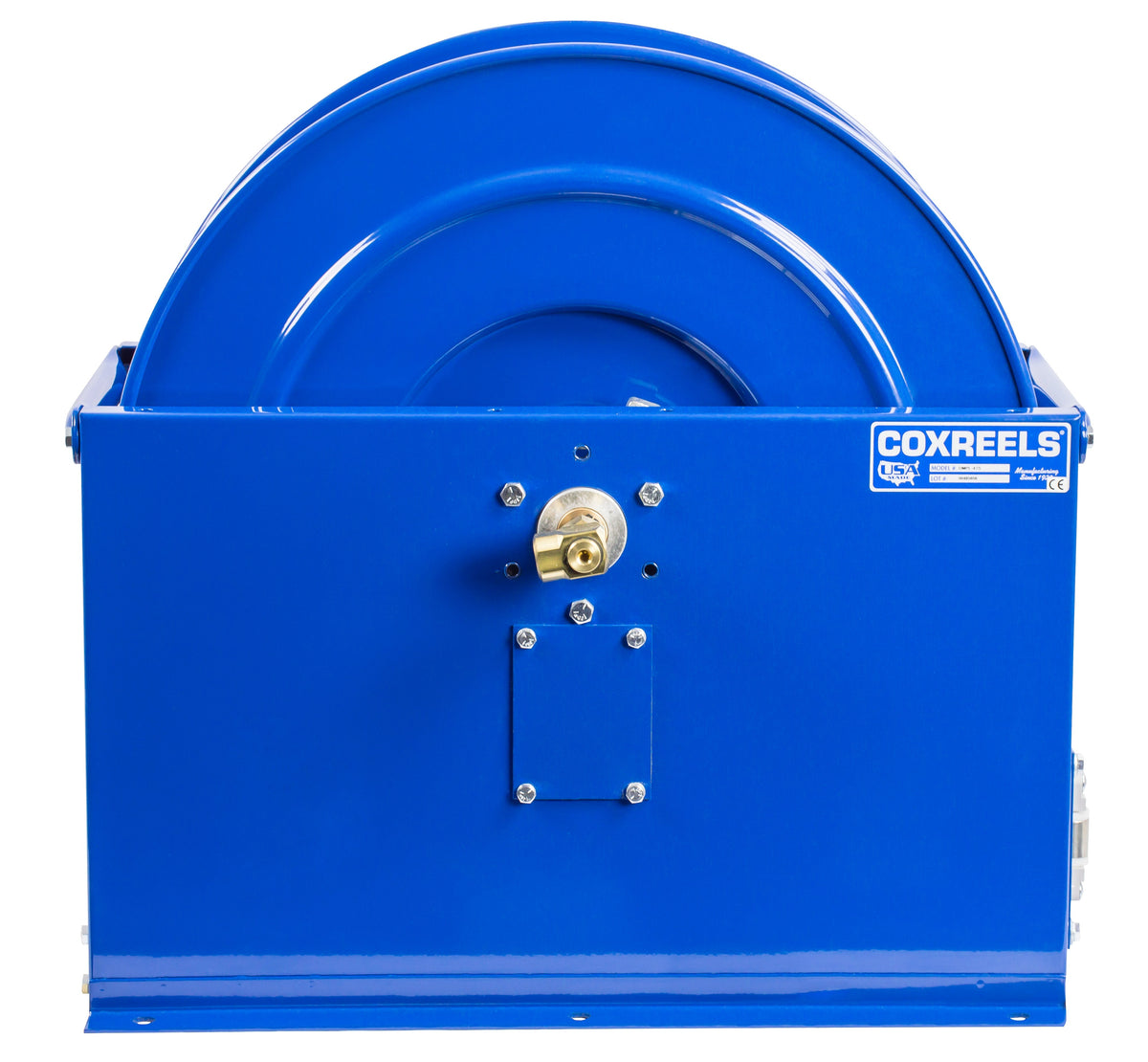

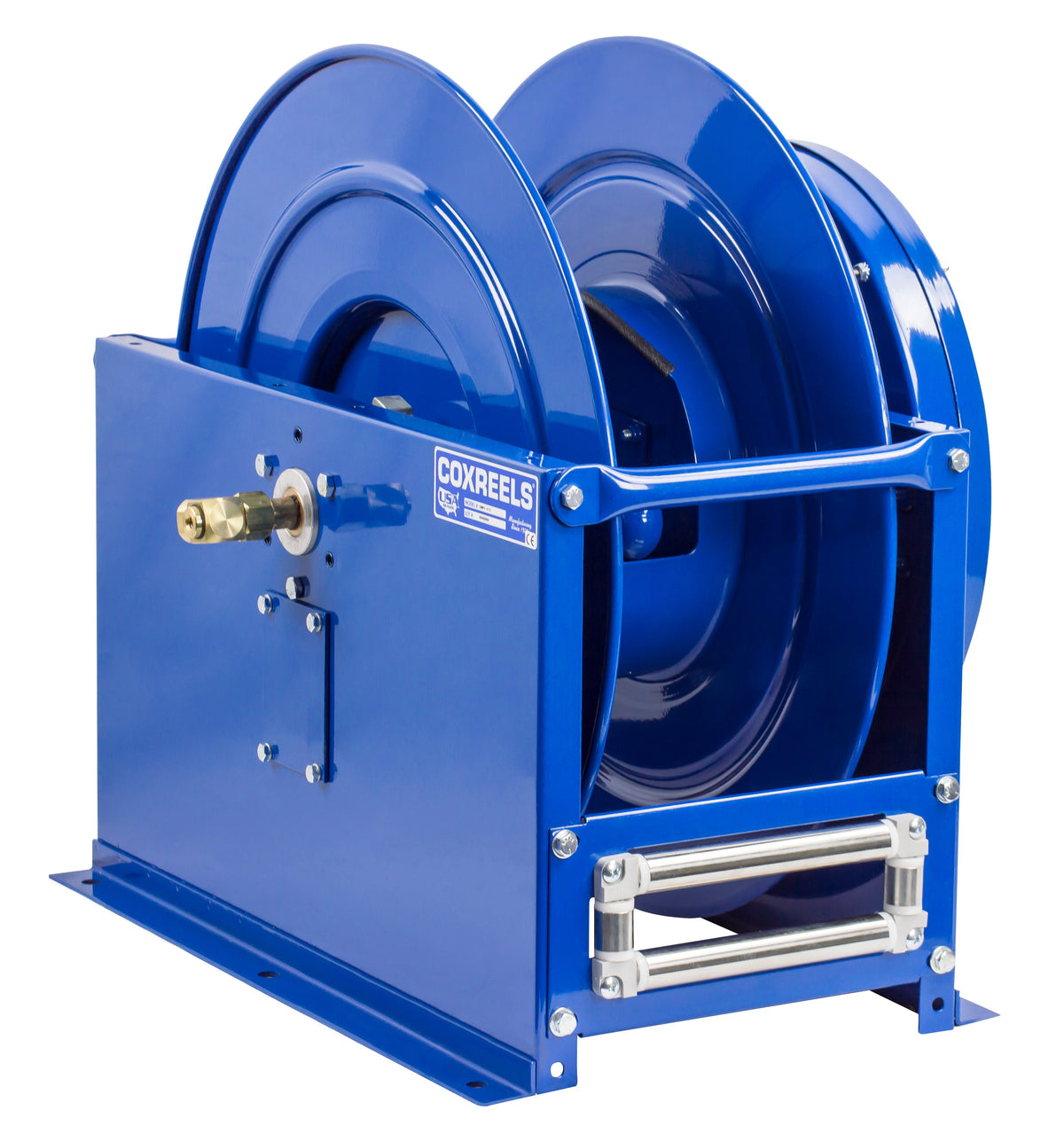

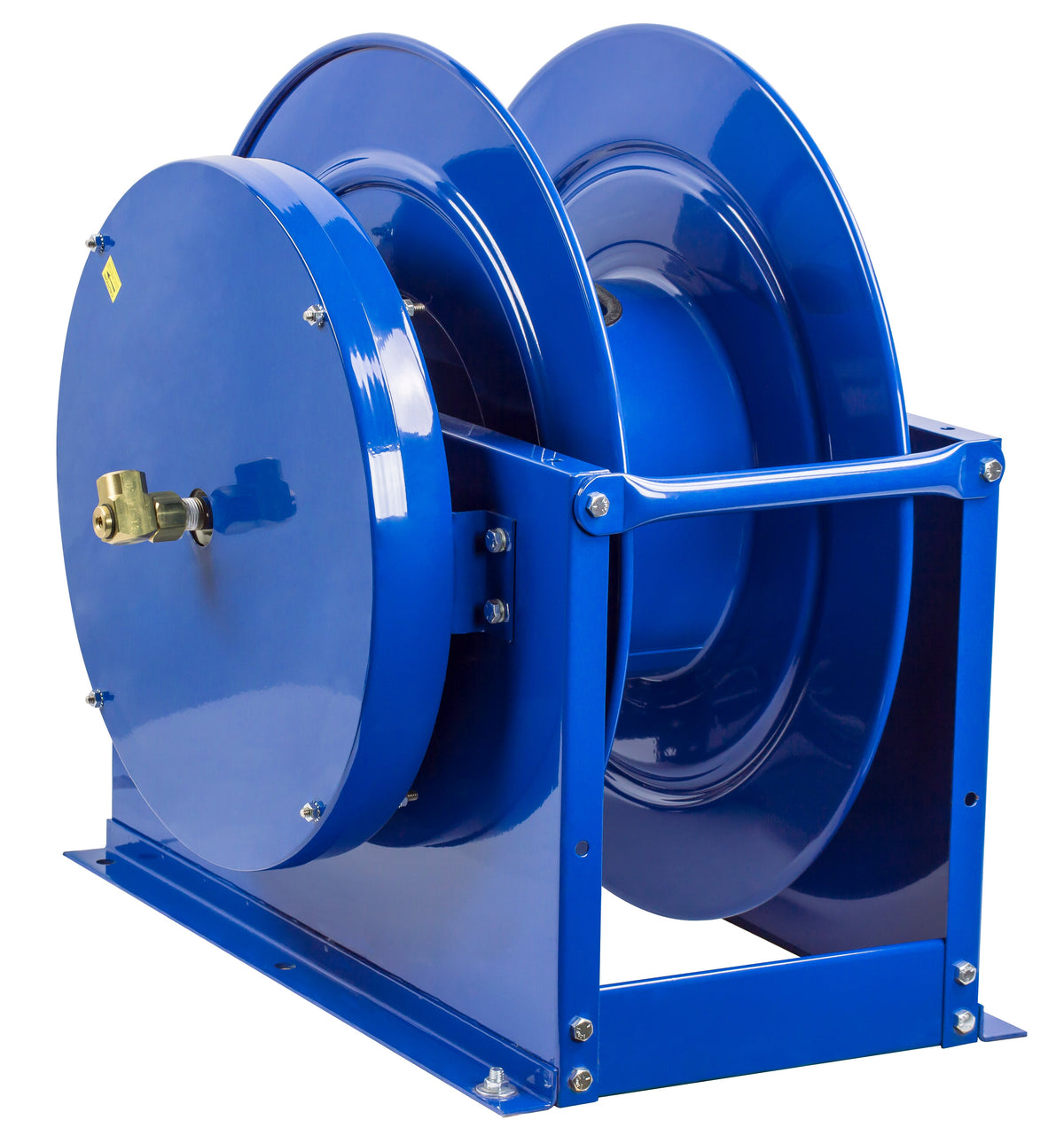

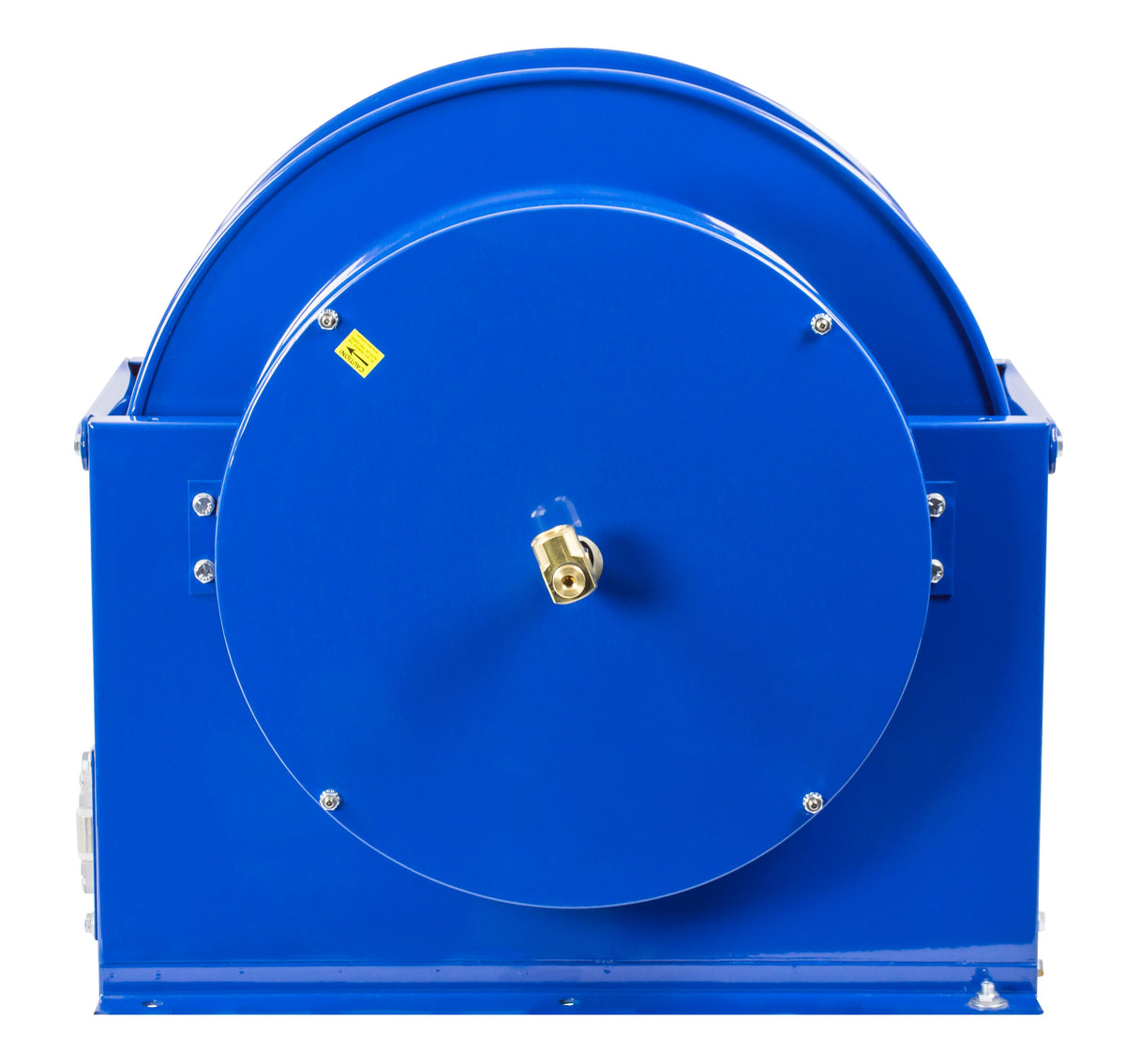

DLPL-4100 by Coxreels | DP Series | 300 PSI Dual Hose Spring Driven Hose Reel | 1/2" Hose ID, 1/2" FNPT Inlet | Steel | 100ft Capacity, Hose Not Included
Coxreels DP Series Spring Driven Hose Reels
Steel box-frame spring driven hose reels for air, water, oil and lubrication, dual product delivery and twin agent, rated to 3,000 PSI. Made in the U.S.A.
1
What is this product used for?
- Air
- Water
- Oil & Lubrication
- Dual Product Delivery
- Twin Agent
- Chemical Fluid Transfer
2
What are the key specifications?
Steel, box-frame
Brass 90° full-flow with Nitrile seals
Female NPT, same size as the hose I.D.
150°F / 250°F depending on hose
1" Permanently Lubricated Precision Bearings
CPC™ powder coat
Floor, Wall, Ceiling, Bench and Vehicles
Ø0.56"
3
What are the main product features?
- Swivel — Two external fluid paths with machined solid brass 90˚ full-flow NPT swivel inlets for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- Cartridge Motor — Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC Spun Discs — Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- Box Style Frame Design — Sturdy and reinforced steel box-style frame design with two inlets and two outlets to handle dual hose applications.
- Oulet Riser — Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
4
Which models are available?
| Part # | Hose I.D. | Capacity | Max PSI | Disc Diameter | Reel W × H × L (in) |
|---|---|---|---|---|---|
| Low Pressure | |||||
| DLPL-350 | 3/8" | 50 ft | 300 | 20" | 21.5 × 20.5 × 22.875 |
| DLPL-375 | 3/8" | 75 ft | 300 | 20" | 21.5 × 20.5 × 22.875 |
| DLPL-450 | 1/2" | 50 ft | 300 | 20" | 21.5 × 20.5 × 22.875 |
| DLPL-475 | 1/2" | 75 ft | 300 | 24" | 21.5 × 24.5 × 26.375 |
| DLPL-525 | 3/4" | 25 ft | 300 | 20" | 23.875 × 20.5 × 22.875 |
| DLPL-550 | 3/4" | 50 ft | 300 | 24" | 23.875 × 24.5 × 26.375 |
| DLPL-3100 | 3/8" | 100 ft | 300 | 24" | 21.5 × 24.5 × 26.375 |
| DLPL-4100 | 1/2" | 100 ft | 300 | 28" | 21.5 × 28.5 × 30.375 |
| Medium Pressure | |||||
| DMPL-350 | 3/8" | 50 ft | 3,000 | 20" | 21.5 × 20.5 × 22.875 |
| DMPL-375 | 3/8" | 75 ft | 3,000 | 20" | 21.5 × 20.5 × 22.875 |
| DMPL-450 | 1/2" | 50 ft | 3,000 | 20" | 21.5 × 20.5 × 22.875 |
| DMPL-475 | 1/2" | 75 ft | 3,000 | 20" | 21.5 × 24.5 × 26.375 |
| DMPL-3100 | 3/8" | 100 ft | 3,000 | 24" | 21.5 × 24.5 × 26.375 |
| DMPL-4100 | 1/2" | 100 ft | 3,000 | 28" | 21.5 × 28.5 × 30.375 |
6
Which factory options can be ordered?
Options are built to order and quoted individually — use the quote form on this page. Each code is the full 4-character option code; X marks positions left standard (B = standard color). Add it after the model number and any mounting or hose suffix; combine options by merging characters. For example, -GXXX plus -BVXX is -GVXX. Leave it off if it would be BXXX. Combinations are confirmed with the quote.
| Code | Option |
|---|---|
| Color / finish | |
| -GXXX | Gray |
| -KXXX | Gloss Black |
| -RXXX | Red |
| -CXXX | Wrinkle Black (25 reel minimum) |
| -WXXX | Gloss White (25 reel minimum) |
| -NXXX | Green (25 reel minimum) |
| Swivel and plumbing | |
| -BVXX | Standard plumbing & swivel with Viton |
| -BEXX | Standard plumbing & swivel with EPR |
| -BGXX | Standard plumbing & stainless steel swivel with Viton |
| -BHXX | Standard plumbing & stainless steel swivel with EPR |
| -BZXX | Less swivel |
| -BAXX / -BBXX / -BCXX | Stainless steel plumbing & swivel: standard seal / with Viton / with EPR |
| -BQXX | Stainless steel plumbing, less swivel |
| Reel set-up | |
| -BXXX | Standard mount: swivel left, riser left bottom, Spring right, Roller bottom |
| -BXFC | ReversePlumbing, Drum & Spring. left bottom riser. Roller: bottom rear |
| -BXCX | Swivel right, top riser, left Spring, Roller: top-rear |
| -BXCC | Reverse plumbing, Drum & Spring. left top riser, Rollers: top |
| -BXIX | Swivel rigth, right top riser, Spring left. Rollers: ceiling-front |
| -BXIC | Reverse plumbing, Drum & Spring. left top riser. Rollers: ceiling rear |
7
Where can I find product documents?
DP Series Spec Sheet
Dimension drawing, capacities and the part-number key.
Operating Manual
Installation, mounting, adjustment and routine maintenance.
Exploded Parts Drawing
Numbered parts breakdown with replacement part numbers.
How is this product sold?
Each.
