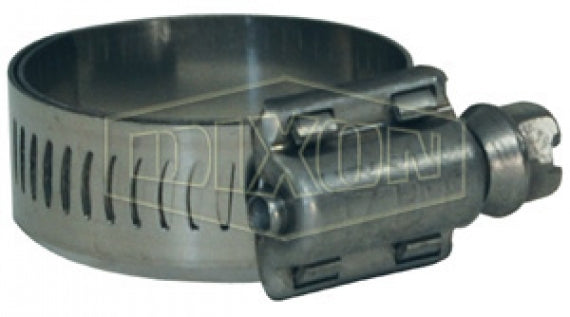

DL9244 by Dixon Valve | Style DL | Aero-Seal® Liner Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 2-5/16" to 3-1/4" | Stainless Steel Band | Plated Carbon Steel Screw | Box of 10

DL9244 by Dixon Valve | Style DL | Aero-Seal® Liner Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 2-5/16" to 3-1/4" | Stainless Steel Band | Plated Carbon Steel Screw | Box of 10

Sale price$117.27

Dixon Valve
Aero-Seal® Liner Worm Gear Clamps | Style DL


Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
5–19 $110.23
20–59 $99.68
60+ $87.95
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aero-Seal
Series:
  • Style DL
Material(s):
  • Stainless Steel
  • Plated Carbon Steel
Features:
  • The integral extension of the band as a liner (no rivets or welds) protects soft surface hose (silicone and others) from damage caused by extrusion or shearing through the band slots
  • Screw design: 5/16" hex slotted hex head
Materials:
  • Style DL
    • Band, Saddle, Housing: Stainless Steel.
    • Screw: Plated Carbon Steel Screw.
  • Style DLS
    • Band and Housing: Stainless Steel.
    • Screw: 410 Stainless Steel Screw.
Style DL
Part Number		 Style DLS
Part Number		 Band Width Hose OD
From To
DL9206 DLS9406 1/2" 7/16" 25/32"
DL9208 DLS9408 1/2" 1/2" 29/32"
DL9210 DLS9410 1/2" 9/16" 1-1/16"
DL9212 DLS9412 1/2" 11/16" 1-1/4"
DL9216 DLS9416 1/2" 13/16" 1-1/2"
DL9220 DLS9420 1/2" 13/16" 1-3/4"
DL9224 DLS9424 1/2" 1-1/16" 2"
DL9228 DLS9428 1/2" 1-5/16" 2-1/4"
DL9232 DLS9432 1/2" 1-9/16" 2-1/2"
DL9236 DLS9436 1/2" 1-13/16" 2-3/4"
DL9240 DLS9440 1/2" 2-1/16" 3"
DL9244 DLS9444 1/2" 2-5/16" 3-1/4"
DL9248 DLS9448 1/2" 2-9/16" 3-1/2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
