DJ250NPSHX50 by Kuriyama | DJ Series | Double Jacket Contractor Grade Layflat Hose Assembly | 2-1/2" Size | 2-1/2" Male NPSH x 2-1/2" Female NPSH | 50ft Length
DJ250NPSHX50 by Kuriyama | DJ Series | Double Jacket Contractor Grade Layflat Hose Assembly | 2-1/2" Size | 2-1/2" Male NPSH x 2-1/2" Female NPSH | 50ft Length

DJ250NPSHX50 by Kuriyama | DJ Series | Double Jacket Contractor Grade Layflat Hose Assembly | 2-1/2" Size | 2-1/2" Male NPSH x 2-1/2" Female NPSH | 50ft Length

Minimum Order Quantity: 5 Units

Sale price$832.11

Kuriyama

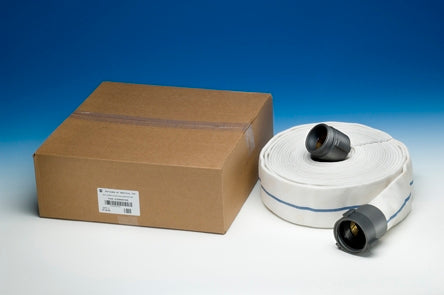

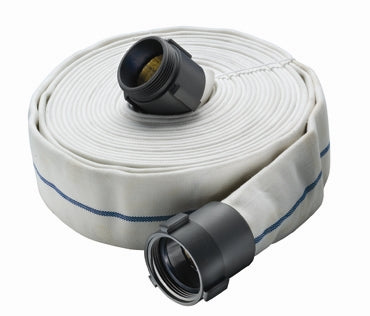

DJ Series | Double Jacket Contractor Grade Layflat Hose Assembly Coupled with Male and Female Aluminum Rocker Lug Couplings

Ideal for heavy-duty equipment or pump rental, hydrant-to-truck water supply, and municipal or ship deck washdown applications.
Buy More, Save More!
Quantity Price Each
5–14 $782.18
15–29 $707.29
30+ $624.08
Discounts applied in cart/checkout.

Product Data:

Series:
  • DJ Series
Color(s):
  • White/Off-White
Internal Diameter:
  • 2.598in

SPECIFICATIONS

Applications: Heavy duty equipment or pump rental.
Hydrant-to-truck water supply line.
Municipal washdown.
Ship deck washdown.
Construction: Double jacket with 100% polyester yarn. Water and mildew-resistant cover, will not rot, even if the hose is stored wet.
Service Temperature Range: -25°F (-31°C) to +185°F (+85°C)
Other Features:
  • Versatile Natural Rubber Tube - Exhibits a good combination of strength and extreme flexibility for ease-of-use.
  • Wide Service Temperature Range - Hose may be used in a wide range of service temperature ranges from -25°F to +185°F.
  • Double Jacket - Double jacket provides additional external abrasion resistance.
  • Compact Design - Flat hose design rolls up into tight coils for easy storage and transport, takes up less space than other hoses.
  • Storage/Shipping Carton - Hoses are individually packaged in cartons for ease of handling and shipping.
Part Number Size Length Thread Type Working
Pressure
in mm (ft) at 68°F
DJ150NSTX50 1-1/2" 38.1mm 50ft Male NST x Female NST 200 PSI
DJ150NPSHX50 1-1/2" 38.1mm 50ft Male NPSH x Female NPSH 200 PSI
DJ250NSTX50 2-1/2" 63.5mm 50ft Male NST x Female NST 200 PSI
DJ250NPSHX50 2-1/2" 63.5mm 50ft Male NPSH x Female NPSH 200 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
