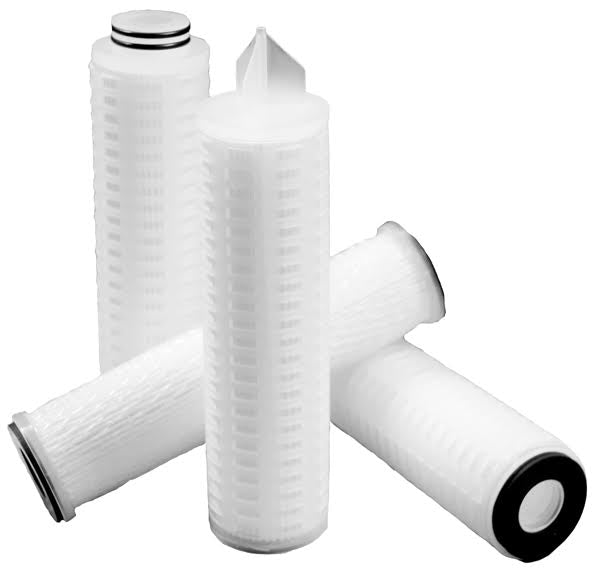

DF-PHEBK34S Dixon Valve High-Efficiency Pleated Cartridge Element - Hard Cage/DOE/Gasket - 1 Micron - 10" Length - Polypropylene/Silicone (Case of 6)
Dixon

DF-PHEBK34S Dixon Valve High-Efficiency Pleated Cartridge Element - Hard Cage/DOE/Gasket - 1 Micron - 10" Length - Polypropylene/Silicone (Case of 6)

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • FDA title 21 compliant
  • Cartridge elements are constructed in a clean room environment
  • Cartridge elements are free of surfactants, resins, binders, and adhesives
Materials:
  • Cartridge element: polypropylene
  • Gasket/O-ring: silicone
Specifications:
  • Retention rating of 99.98%
  • Recommended change out differential pressure: 35 PSID (2.4 bar)
Part Number Diameter Element Length Style Micron
DF-PHEBF39S 2.65" 10" Hard Cage/DOE/Gasket .45
DF-PHEBK39S 2.65" 10" Hard Cage/DOE/Gasket 1
DF-PHEBF59S 2.65" 20" Hard Cage/DOE/Gasket .45
DF-PHEBK59S 2.65" 20" Hard Cage/DOE/Gasket 1
DF-PHEBK79S 2.65" 30" Hard Cage/DOE/Gasket 1
DF-PHEBF34S 2.65" 10" Hard Cage/DOE/Gasket .45
DF-PHEBK34S 2.65" 10" Hard Cage/DOE/Gasket 1
DF-PHEBF54S 2.65" 20" Hard Cage/DOE/Gasket .45
DF-PHEBK54S 2.65" 20" Hard Cage/DOE/Gasket 1
DF-PHEBF74S 2.65" 30" Hard Cage/DOE/Gasket .45
DF-PHEBK74S 2.65" 30" Hard Cage/DOE/Gasket 1
DF-PHEBF36S 2.65" 10" Hard Cage/226/Fin .45
DF-PHEBK36S 2.65" 10" Hard Cage/226/Fin 1
DF-PHEBF56S 2.65" 20" Hard Cage/226/Fin .45
DF-PHEBK56S 2.65" 20" Hard Cage/226/Fin 1
DF-PHEBF76S 2.65" 30" Hard Cage/226/Fin .45
DF-PHEBK76S 2.65" 30" Hard Cage/226/Fin 1

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
