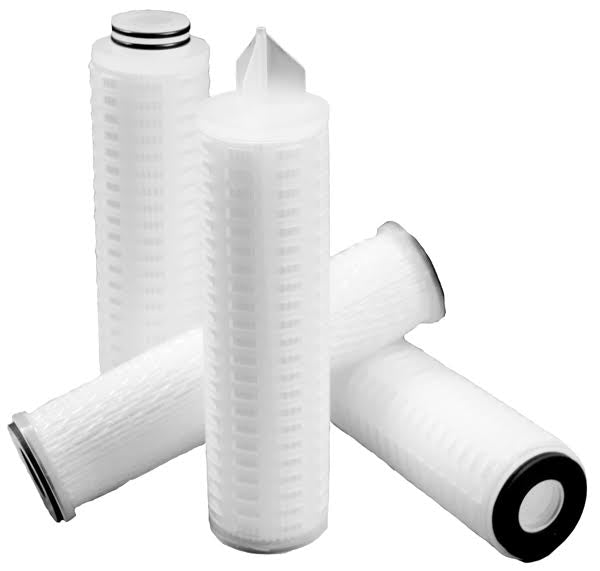

DF-PESE7E4S Dixon Valve PES Membrane Element - Hard Cage/222/Closed - .22 Micron - 30" Length - Polyethersulfone/Polypropylene/Silicone (Case of 6)
Dixon

DF-PESE7E4S Dixon Valve PES Membrane Element - Hard Cage/222/Closed - .22 Micron - 30" Length - Polyethersulfone/Polypropylene/Silicone (Case of 6)

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • FDA title 21 compliant
  • Cartridge elements are constructed in a clean room environment
  • Cartridge elements have excellent dirt holding capacity with low flow resistance
  • Cartridge elements are free of surfactants, resins, binders, and adhesives
  • Low protein binding and chemical compatibility
  • Naturally hydrophilic media does not need wetting before use
Materials:
  • Cartridge element: polyethersulfone; core material: polypropylene
  • Gasket/O-ring: silicone
Specifications:
  • Maximum differential pressure: 45 PSID
  • Maximum operating pressure: 45 PSID
Part Number Diameter Element Length Style Micron
DF-PESE3E4S 2.65" OD/ 1" Center ID 10" Hard Cage/222/Closed .22
DF-PESE5E4S 2.65" OD/ 1" Center ID 20" Hard Cage/222/Closed .22
DF-PESF5E4S 2.65" OD/ 1" Center ID 20" Hard Cage/222/Closed .45
DF-PESE7E4S 2.65" OD/ 1" Center ID 30" Hard Cage/222/Closed .22
DF-PESF7E4S 2.65" OD/ 1" Center ID 30" Hard Cage/222/Closed .45
DF-PESE3E6S 2.65" OD/ 1" Center ID 10" Hard Cage/226/Fin .22
DF-PESF3E6S 2.65" OD/ 1" Center ID 10" Hard Cage/226/Fin .45
DF-PESE5E6S 2.65" OD/ 1" Center ID 20" Hard Cage/226/Fin .22
DF-PESF5E6S 2.65" OD/ 1" Center ID 20" Hard Cage/226/Fin .45
DF-PESE7E6S 2.65" OD/ 1" Center ID 30" Hard Cage/226/Fin .22

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
