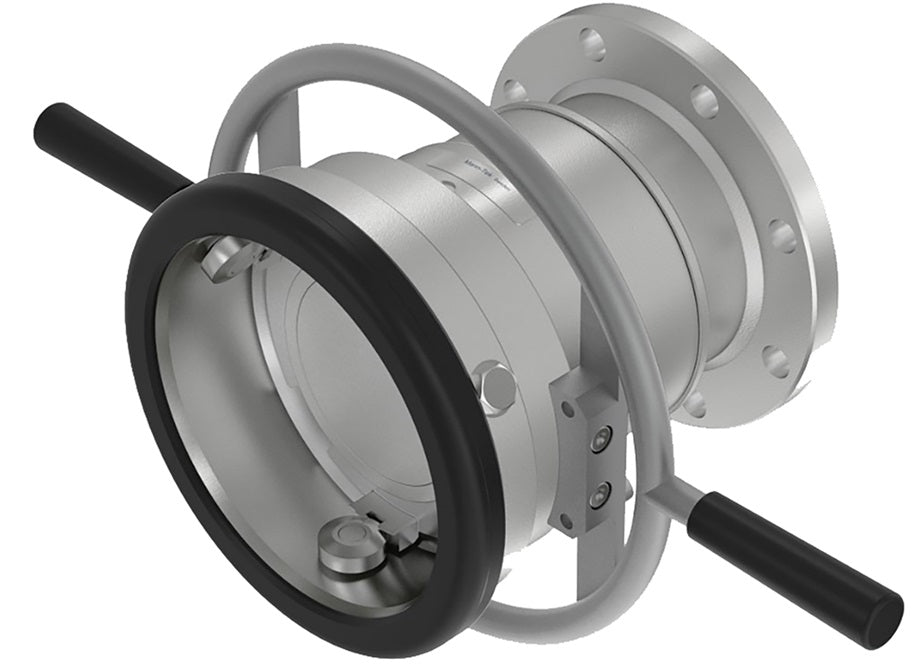

DDC600SSFL by Dixon Valve | MannTek Dry Disconnect Coupler | Hose Unit | 6" 150# ASA Flange | 238mm Body Size | 316 Stainless Steel

DDC600SSFL by Dixon Valve | MannTek Dry Disconnect Coupler | Hose Unit | 6" 150# ASA Flange | 238mm Body Size | 316 Stainless Steel

Sale price$15,705.94

Dixon Valve
MannTek Dry Disconnect | Hose Unit | Coupler x 150# ASA Flange

Dry disconnect couplings are designed for the quick and spill free connection and disconnection of hoses and pipelines.

They are used by producers of ink, adhesives, fatty acids, pharmaceuticals, liquid soaps, petroleum, chemicals, agricultural and a wide variety of common caustic and specialty acids.


FREE SHIPPING DOMESTICALLY!
Buy More, Save More!
Quantity Price Each
3–5 $14,763.58
6+ $14,135.35
Discounts applied in cart/checkout.

Product Data:

Brand:
  • MannTek
Shape:

Straight

Ends Configuration:
  • 238mm Female Manntek Dry Disconnect
  • 6in 150# Flange
Compatibility & Interchange Data:
  • Compatible with Mann-Tek, Avery Hardoll and Todo-matic® and any other product produced according to NATO standard STANAG 3756.
Construction:
  • Standard seal supplied: FKM (FPM).
  • Stainless steel ball bearings.
  • All wetted parts are stainless steel.
  • Rollers are Hastelloy C276 on the stainless steel shaft.
Features:
  • Coupler has built-in swivel.
  • Shaft journal in stainless steel embedded in PTFE to eliminate seizure.
  • The protective ring is a specially formulated, weather resistant and electrically conductive rubber compound.
  • Selectivity - to avoid product contamination, selective versions of the couplers and adapters are available. Contact Dixon for further information.
  • Easy to handle - push and turn - free flow, turn and pull - closed.
  • Time saving - no need to drain hoses or pipe systems.
  • Economical - no loss or spillage of liquids at connection or disconnection.
  • Safety - the valve cannot be opened until the unit is coupled.
  • Environmental friendly - accidental spillage eliminated when properly used.
  • Safe and reliable - due to rugged construction.
  • Product life - uncomplicated design and high quality materials ensures long product life.
Specifications:
  • Produced according to NATO standard STANAG 3756 and ATOFINA SGM 2049.TUY.C
  • Working pressure is based on PSI at ambient temperature 70°F.
  • Stainless Steel: 360 PSI
Use:
  • Use with composite (Polyeten PE-HD 300) plugs for protection against corrosion; plugs withstand hot and cold environments.
316 Stainless Steel
Part Number		 150# Flange Body Size
DDC200SSFL 2" 70 mm
DDC300SSFL 3" 119 mm
DDC400SSFL 4" 164 mm
DDC600SSFL 6" 238 mm
DDC800SSFL 8" 272 mm

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
