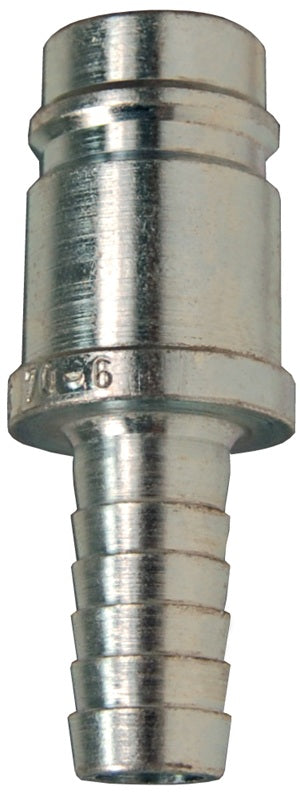

DCP7146 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Plug | Hose Barb | 3/4" Hose ID x 3/4" Body Size | Steel

DCP7146 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Plug | Hose Barb | 3/4" Hose ID x 3/4" Body Size | Steel

Sale price$23.58

Air Chief Industrial Interchange Quick-Connect Plugs Air Chief industrial quick-connect plugs are the popular industrial interchange design and will interchange with many other makes. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Buy More, Save More!
Quantity Price Each
10–39 $22.17
40–79 $20.04
80+ $17.69
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Male ISO-6150 Series B Industrial Pneumatic QD Interchange
  • 3/4in Hose Barb
Material(s):
  • Steel
Features:
  • Interchanges with many other manufacturer's designs.
  • Interchanges with MIL Spec. MIL-C-4109F/A-A-59439 and ISO 6150-B.
Construction:
  • Steel
Specifications:
  • Pressure rating: 300 PSI
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
  • For air service only.
Part Number Body Size Hose ID Flow Rating
at 100 PSI
DCP2143 1/4" 5/16" 37 CFM
DCP2144 1/4" 3/8" 37 CFM
DCP2545 3/8" 1/2" 70 CFM
DCP1746 1/2" 3/4" 150 CFM
DCP7145 3/4" 1/2" 200 CFM
DCP7146 3/4" 3/4" 200 CFM
DCP7148 3/4" 1" 200 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
