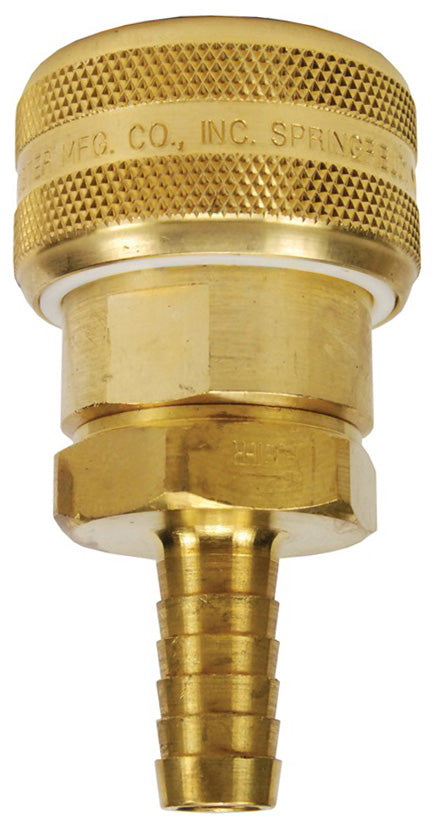

DC7045 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Automatic | Hose Barb | 1/2" Hose ID x 3/4" Body Size | Brass

DC7045 Air Chief by Dixon Valve | Pneumatic Industrial Interchange Coupler/Socket | Automatic | Hose Barb | 1/2" Hose ID x 3/4" Body Size | Brass

Sale price$75.16

Air Chief Industrial Interchange Quick-Connect Couplers Air Chief industrial quick-connect couplers are the popular Industrial Interchange design and will interchange with many other makes. Couplers shut-off when disconnected. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Buy More, Save More!
Quantity Price Each
5–19 $70.65
20–59 $63.89
60+ $56.37
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Female ISO-6150 Series B Industrial Pneumatic QD Interchange
  • 1/2in Hose Barb
Material(s):
  • Brass
Features:
  • Automatic - push to connect.
  • Couplers shut off when disconnected.
  • Interchanges with many other manufacturer's designs.
Construction:
  • Brass
Specifications:
  • Interchanges with MIL Spec. MIL-C-4109F/A-A-59439
  • Pressure rating: 300 PSI
  • Temperature range: -40 °F to 250 °F (-40 °C to 121 °C)
Safety Notes:
  • For air service only.
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
Brass
Part Number		 Body Size Hose ID Flow Rating
at 100 PSI
DC7045 3/4" 1/2" 190 CFM
DC7046 3/4" 3/4" 190 CFM
DC7048 3/4" 1" 190 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
