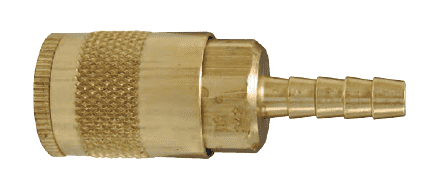

2JS2.5-B (DC243) Dixon Valve Brass Air Chief Automotive Interchange Quick-Connect Coupler (Semi-Automatic Pull Sleeve to Connect) - Standard Hose Barb - 1/4" Body Size x 5/16" Hose ID

2JS2.5-B (DC243) Dixon Valve Brass Air Chief Automotive Interchange Quick-Connect Coupler (Semi-Automatic Pull Sleeve to Connect) - Standard Hose Barb - 1/4" Body Size x 5/16" Hose ID

Sale price$25.69
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Standard Hose Barb
  • Rated to 300 PSI.
  • Temperature range: -40 deg. F to 250 deg. F
Part Number Body Size Hose ID Material Flow Rating at 100 PSI Min/Max Temp. PSI Weight (Lbs)
DC242 1/4" 1/4" Brass 37 CFM -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) 300 (20.41 bar) 0.1800
DC243 1/4" 5/16" Brass 37 CFM -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) 300 (20.41 bar) 0.1900
DC244 1/4" 3/8" Brass 37 CFM -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) 300 (20.41 bar) 0.1900
DC642 3/8" 1/4" Steel 70 CFM -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) 300 (20.41 bar) 0.2700
DC644 3/8" 3/8" Steel 70 CFM -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) 300 (20.41 bar) 0.2600
DC645 3/8" 1/2" Steel 70 CFM -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) 300 (20.41 bar) 0.2700
DC1044 1/2" 3/8" Steel 150 CFM -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) 300 (20.41 bar) 0.4200
DC1045 1/2" 1/2" Steel 150 CFM -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) 300 (20.41 bar) 0.4500
DC1046 1/2" 3/4" Steel 150 CFM -40 deg. F / 250 deg. F (-40.00 deg. C / 121.11 deg. C) 300 (20.41 bar) 0.4700

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female Tru-Flate QD Interchange
  • 5/16in Hose Barb
Material(s):
  • Brass

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
