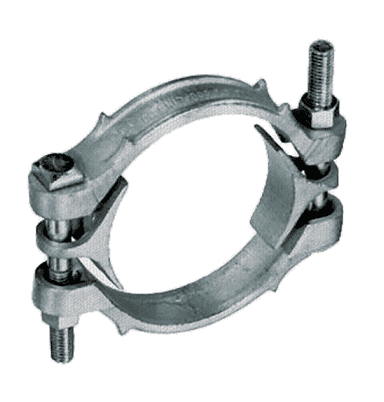

DB1275 by Kuriyama | Double Bolt Hose Clamp | Finish: Zinc Plated | Size Range: 11-3/16" - 12-1/2" | Torque: 125 ft. lbs. | Ductile Iron
Kuriyama Couplings™ - Double Bolt Hose Clamp - Zinc Plated Ductile Iron
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $83.62 |
| 20–59 | $75.62 |
| 60+ | $66.72 |
Discounts applied in cart/checkout.
Product Data:
Material(s):
Minimum Clamp I.D.:
11.1875"
Maximum Clamp I.D.:
12.5"
| Applications: | |||
|---|---|---|---|
|
|||
| Features: | |||
|
|||
| Materials: | |||
|
| Part Number | Size Range (in.) | Torque (ft. lbs.) | Weight (Lbs.) |
|---|---|---|---|
| DB29 | 7/8" - 1 9/64" | 20ft | 0.29 lbs |
| DB34 | 1-5/32" - 1-11/32" | 20ft | 0.31 lbs |
| DB40 | 1-5/16" - 1-19/32" | 20ft | 0.43 lbs |
| DB49 | 1-5/8" - 1-15/16" | 20ft | 0.56 lbs |
| DB60 | 1-7/8" - 2-3/8" | 20ft | 0.64 lbs |
| DB76 | 2-3/8" - 3-1/64" | 40ft | 0.73 lbs |
| DB94 | 3-1/32" - 3-11/16" | 40ft | 1.30 lbs |
| DB400 | 3-1/2 - 4" | 40ft" | 1.54 lbs |
| DB463 | 4-1/16" - 4-7/16" | 40ft | 1.79 lbs | DB525 | 4-3/16" - 5" | 60ft" | 2.14 lbs |
| DB550 | 5" - 5-1/2" | 60ft | 2.27 lbs |
| DB600 | 5-1/2 - 6-1/16" | 60ft | 2.65 lbs |
| DB675 | 6-1/8" - 6-7/8" | 60ft | 2.98 lbs |
| DB769 | 6-15/16 - 7-5/8" | 60ft | 3.81 lbs |
| DB818 | 7-11/16" - 8-3/16" | 125ft | 5.11 lbs |
| DB875 | 8-1/4" - 8-7/8" | 125ft | 5.64 lbs |
| DB988 | 8-15/16" - 9-7/8" | 125ft | 6.15 lbs |
| DB1125 | 9-15/16" - 11-3/8" | 125ft | 9.48 lbs |
| DB1275 | 11-3/16" - 12-1/2" | 125ft | 9.61 lbs |
| DB1360 | 12-3/16" - 14" | 200ft | 15.43 lbs |
