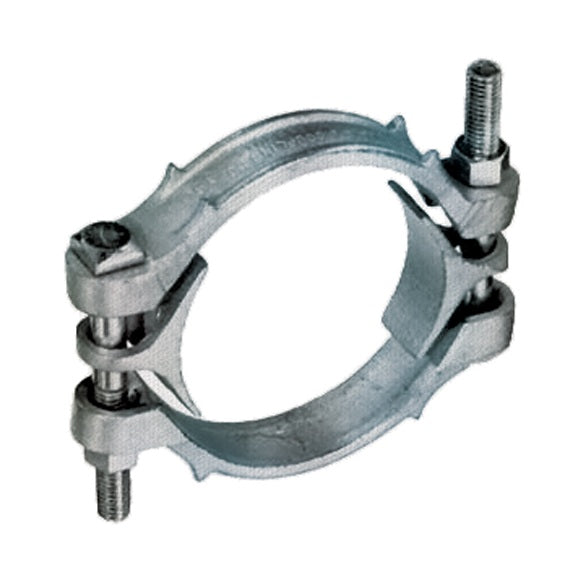

DB115 by Kuriyama | DB Series | Double Bolt Hose Clamp | 3-3/4" to 4-1/2" Size Range | Zinc Plated Ductile Iron
Buy more, save moreDiscounts applied in cart/checkout.
What are the Features?
- Design provides for an efficient means of securing couplings and fittings to hoses.
- Double tongue saddles provided to fill the gap between the bolt lugs preventing pinching of the outside of the hose.
- Fully tightened, the clamps secure the full circumference of the hose.
What are the Materials?
- Zinc Plated Ductile Iron.
| Part Number | Size Range (in) |
Maximum Torque (ft lbs) |
Weight Each (lbs) |
|---|---|---|---|
| DB29 | 7/8" - 1-9/64" | 20 ft lbs | 0.29 lbs |
| DB34 | 1-5/32" - 1-11/32" | 20 ft lbs | 0.31 lbs |
| DB40 | 1-5/16" - 1-19/32" | 20 ft lbs | 0.43 lbs |
| DB49 | 1-5/8" - 1-15/16" | 20 ft lbs | 0.56 lbs |
| DB60 | 1-7/8" - 2-3/8" | 20 ft lbs | 0.64 lbs |
| DB76 | 2-3/8" - 3-7/16" | 40 ft lbs | 0.73 lbs |
| DB94 | 3-1/32" - 3-11/16" | 40 ft lbs | 1.30 lbs |
| DB115 | 3-3/4" - 4-1/2" | 40 ft lbs | 1.68 lbs |
| DB400 | 3-1/2" - 4" | 40 ft lbs | 1.54 lbs |
| DB431 | 3-25/32" - 4-1/16" | 40 ft lbs | 2.13 lbs |
| DB463 | 4-1/16" - 4-7/16" | 40 ft lbs | 1.79 lbs |
| DB525 | 4-3/16" - 5" | 60 ft lbs | 2.14 lbs |
| DB550 | 4-7/16" - 5-3/16" | 60 ft lbs | 2.27 lbs |
| DB600 | 5-1/2" - 5-7/8" | 60 ft lbs | 2.65 lbs |
| DB639 | 5-11/16" - 5-15/16" | 60 ft lbs | 2.80 lbs |
| DB675 | 6-1/8" - 6-7/8" | 60 ft lbs | 2.98 lbs |
| DB769 | 6-15/16" - 7-5/8" | 60 ft lbs | 3.81 lbs |
| DB818 | 7-11/16" - 8-3/16" | 125 ft lbs | 5.11 lbs |
| DB875 | 8-1/4" - 8-7/8" | 125 ft lbs | 5.64 lbs |
| DB988 | 8-15/16" - 9-7/8" | 125 ft lbs | 6.15 lbs |
| DB1125 | 9-15/16" - 11-3/8" | 125 ft lbs | 9.48 lbs |
| DB1275 | 11-3/16" - 13" | 125 ft lbs | 9.61 lbs |
| DB1360 | 12-3/16" - 14" | 200 ft lbs | 15.43 lbs |
| DB1450 | 13-3/16" - 15" | 200 ft lbs | 16.74 lbs |
| DB1700 | 15-1/16" - 17-1/2" | 260 ft lbs | 22.13 lbs |
Additional Product Data:
Series:
Material(s):
