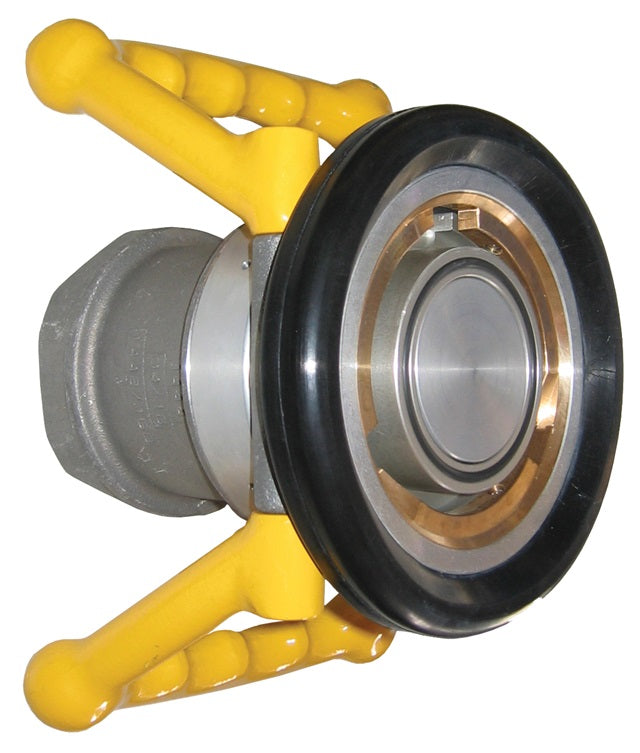

DAC300AL by Dixon Valve | MannTek Dry Disconnect Aviation Coupler | Hose Unit | 3" Female NPT | ISO 45 Body Size | Aluminum

DAC300AL by Dixon Valve | MannTek Dry Disconnect Aviation Coupler | Hose Unit | 3" Female NPT | ISO 45 Body Size | Aluminum

Sale price$1,416.48

Dixon Valve
MannTek Dry Disconnect Aviation Coupler | Hose Unit | Female NPT x ISO 45

Designed for use in aviation refueling systems.
Buy More, Save More!
Quantity Price Each
4–7 $1,331.49
8–14 $1,274.83
15+ $1,133.18
Discounts applied in cart/checkout.

Product Data:

Brand:
  • MannTek
Shape:

Straight

Ends Configuration:
  • 3in Male Manntek Dry Disconnect
  • 3in Female NPT
Features:
  • Composite (Polyeten PE-HD 300) plug provides good protection in harsh environments.
  • Accepts international standard 2-1/2" point bayonet, hose end refueling nozzles according to: ISO45 / MS24484 / STANAG 3105 / British Aerospace Spec. 2C14, they are not configured for under-wing refueling.
  • Gunmetal coupling ring minimizes the risk of seizure.
  • Riveted piston pin minimizes risk of failure under extreme pressure conditions.
  • Protective ring is a specially formulated weather resistant and electrically conductive rubber compound.
Materials:
  • Body: high-strength aluminum
  • Coupling ring: gunmetal (produced to U.S. government bronze specification G).
  • Bayonet flange and inner parts: stainless steel, aluminum.
  • All wetted parts are aluminum and stainless steel.
  • Stainless steel ball bearings.
  • Stainless steel shaft journal embedded in PTFE eliminates seizure.
  • PTFE bearings between the driving plate and piston guide eliminate the risk of seizure.
Specifications:
  • Working pressure: 150 PSI at ambient temperature 70°F (21°C).
  • Accepts international standard 2-1/2" point bayonet, hose end refueling nozzles according to: ISO45 / MS24484 / STANAG 3105 / British Aerospace Spec. 2C14.
Safety Note:
  • Not configured for under-wing refueling.
Part Number Female NPT Body Size
DAC250AL 2-1/2" ISO 45
DAC300AL 3" ISO 45

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
