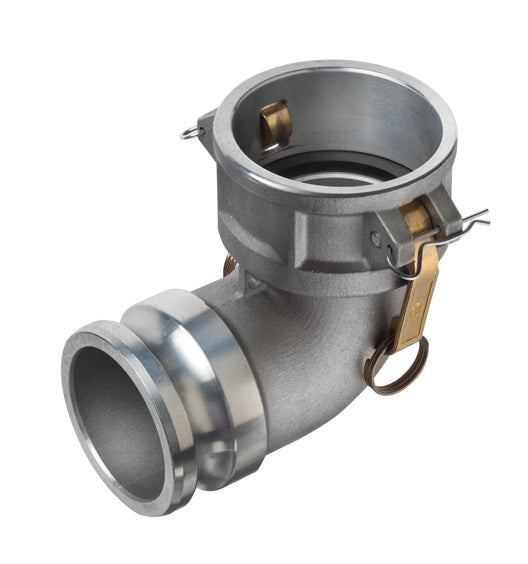

DA90-A200 by Kuriyama | DA90-A Series | Part DA | 90° Elbow | Cam & Groove Adapter | 2" Coupler x 2" Adapter | Aluminum
Kuriyama Couplings™ - Quick-Acting Special Application Couplings - Part A - 90 deg. Elbow Coupler x Adapter - Aluminum
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $59.73 |
| 40–79 | $54.01 |
| 80+ | $47.66 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
Seal Material(s):
What are the Applications?
- Kuriyama Camlock Couplings are intended for use in many industrial applications.
- Ideal for agriculture, industrial, petroleum, construction, and irrigation.
What are the Features?
- High quality design made to withstand rigorous applications found in industrial markets.
- Aluminum alloy specially designed for high tensile strength and impact resistance.
- Supplied with forged brass handles which results in less wear on connecting parts.
What are the Materials?
- ASTM aluminum alloy.
- Complies with Mil-Spec A-A-59326 for interchangeability.
- Forged brass handles.
- Zinc-plated carbon steel handle pins, pull rings and safety clips.
- Buna-N gasket included.
| Part Number | Size (in) |
PSI Rating at 70°F |
ASTM Specification | Weight Each (lbs) |
|---|---|---|---|---|
| DA90-A150 | 1-1/2" | 250 PSI | B85 Grade 383 | 1.10 lbs |
| DA90-A200 | 2" | 250 PSI | B85 Grade 383 | 1.50 lbs |
| DA90-A300 | 3" | 150 PSI | B85 Grade 383 | 2.17 lbs |
| DA90-A400 | 4" | 150 PSI | B85 Grade 383 | 4.30 lbs |
| DA90-A600 | 6" | 75 PSI | B85 Grade 383 | 13.20 lbs |
