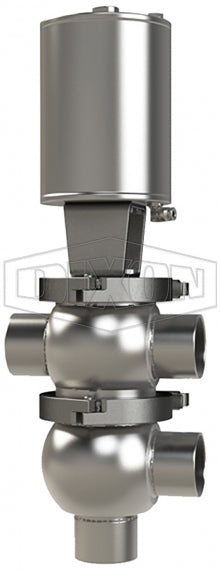

D06A25B3PE Dixon Valve 2-1/2" Single Seat Valve, Divert TL Body, Weld, Double Acting Actuator (Air-To-Air) - PTFE Plug Seal - EPDM Wetted Elastomer
Dixon

D06A25B3PE Dixon Valve 2-1/2" Single Seat Valve, Divert TL Body, Weld, Double Acting Actuator (Air-To-Air) - PTFE Plug Seal - EPDM Wetted Elastomer

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Maximum Operating Temperature: 266°F (130°C)
  • Surface ID Finish: < 32Ra
  • Maximum Sterilization Temperature: (20 min/max): 275°F (135°C)
  • Elastomers are FDA and 3A compliant.
Construction:
  • All product contact steel components: 316L stainless steel
  • All non-product contact steel components: 304 stainless steel
Specifications:
  • 3A - authorization number 1655, 53-06 (compression-type valves).
Size Dimensions
A Stroke B C C2 D E F
2-1/2" 11.36" 1.04" 4.72" 3.00" - 6.08" 8.33" 6.00"
Part Number Size Actuator Type Stem Type Wetted Elastomers
D06A25B1EE 2-1/2" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D06A25B2EE 2-1/2" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D06A25B3EE 2-1/2" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D06A25B1EV 2-1/2" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D06A25B2EV 2-1/2" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D06A25B3EV 2-1/2" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D06A25B1PE 2-1/2" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal EPDM Wetted Elastomer
D06A25B2PE 2-1/2" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal EPDM Wetted Elastomer
D06A25B3PE 2-1/2" Double Acting Actuator (Air-To-Air) PTFE Plug Seal EPDM Wetted Elastomer
D06A25B1PV 2-1/2" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal FKM Wetted Elastomer
D06A25B2PV 2-1/2" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal FKM Wetted Elastomer
D06A25B3PV 2-1/2" Double Acting Actuator (Air-To-Air) PTFE Plug Seal FKM Wetted Elastomer

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
