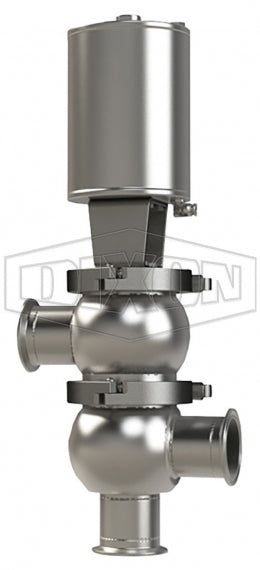

D05A20C1PE Dixon Valve 2" Single Seat Valve, Divert LL Body, Clamp, Spring Return Actuator (Air-To-Raise) - PTFE Plug Seal - EPDM Wetted Elastomer

D05A20C1PE Dixon Valve 2" Single Seat Valve, Divert LL Body, Clamp, Spring Return Actuator (Air-To-Raise) - PTFE Plug Seal - EPDM Wetted Elastomer

Sale price$2,475.43
Factory Order - Lead Time Applies
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Maximum Operating Temperature: 266°F (130°C)
  • Surface ID Finish:< 32Ra
  • Maximum Sterilization Temperature: (20 min/max): 275°F (135°C)
  • Elastomers are FDA and 3A compliant.
Construction:
  • All product contact steel components: 316L stainless steel
  • All non-product contact steel components: 304 stainless steel
Specifications:
  • 3A - authorization number 1655, 53-06 (compression-type valves).
Size Dimensions
A Stroke B C C2 D E F
2" 9.05" 0.77" 3.64" 3.50" - 4.11" 7.64" 6.00"
Part Number Size Actuator Type Stem Type Wetted Elastomers
D05A20C1EE 2" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A20C2EE 2" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A20C3EE 2" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A20C1EV 2" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D05A20C2EV 2" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D05A20C3EV 2" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D05A20C1PE 2" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal EPDM Wetted Elastomer
D05A20C2PE 2" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal EPDM Wetted Elastomer
D05A20C3PE 2" Double Acting Actuator (Air-To-Air) PTFE Plug Seal EPDM Wetted Elastomer
D05A20C1PV 2" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal FKM Wetted Elastomer
D05A20C2PV 2" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal FKM Wetted Elastomer
D05A20C3PV 2" Double Acting Actuator (Air-To-Air) PTFE Plug Seal FKM Wetted Elastomer
D05A20C1EEA 2" Spring Return Actuator (Air-To-Raise)
10-30VDC External Prox, PNP		 Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A20C1EEF 2" Spring Return Actuator (Air-To-Raise)
Burkert 8691, Single Acting, AS-i, Multipin		 Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A20C1EEG 2" Spring Return Actuator (Air-To-Raise)
Burkert 8691, Single Acting, 24VDC, Multipin		 Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A20C1EVG 2" Spring Return Actuator (Air-To-Raise)
Burkert 8691, Single Acting, 24VDC, Multipin		 Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D05A20C1PEG 2" Spring Return Actuator (Air-To-Raise)
Burkert 8691, Single Acting, 24VDC, Multipin		 PTFE Plug Seal EPDM Wetted Elastomer
D05A20C2PEG 2" Spring Return Actuator (Air-To-Lower)
Burkert 8691, Single Acting, 24VDC, Multipin		 PTFE Plug Seal EPDM Wetted Elastomer
D05A20C1PVG 2" Spring Return Actuator (Air-To-Raise)
Burkert 8691, Single Acting, 24VDC, Multipin		 PTFE Plug Seal FKM Wetted Elastomer
D05A20C2PVG 2" Spring Return Actuator (Air-To-Lower)
Burkert 8691, Single Acting, 24VDC, Multipin		 PTFE Plug Seal FKM Wetted Elastomer
D05A20C1PVL 2" Spring Return Actuator (Air-To-Raise)
Burkert 8691, without Solenoid, 24VDC, Multipin		 PTFE Plug Seal FKM Wetted Elastomer

Additional Product Data:

Shape:

Multi-Directional

Material(s):
  • 316L Stainless Steel
  • 304 Stainless Steel
Seal Material(s):
  • EPDM
