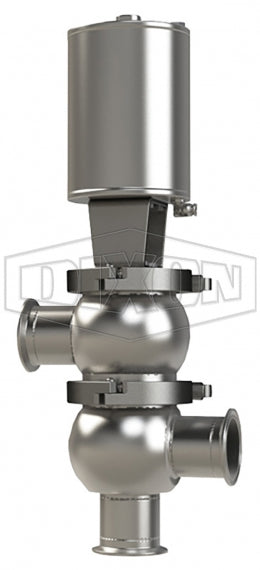

D05A10C1EE Dixon Valve 1" Single Seat Valve, Divert LL Body, Clamp, Spring Return Actuator (Air-To-Raise) - Elastomer O-Ring Stem Seal - EPDM Wetted Elastomer

D05A10C1EE Dixon Valve 1" Single Seat Valve, Divert LL Body, Clamp, Spring Return Actuator (Air-To-Raise) - Elastomer O-Ring Stem Seal - EPDM Wetted Elastomer

Sale price$1,249.87

Dixon Sanitary Valves
1" Single Seat Valve - Divert LL Body - Clamp Ends

Used in sanitary processes for the diversion of fluids. These valves are found in the food processing, beverage, dairy, personal care, winery, brewery, and pet product markets.
Buy More, Save More!
Quantity Price Each
4–7 $1,174.88
8–14 $1,124.88
15+ $999.90
Discounts applied in cart/checkout.

Product Data:

Shape:

Multi-Directional

Material(s):
  • 316L Stainless Steel
  • 304 Stainless Steel
Seal Material(s):
  • EPDM
Features:
  • Maximum Operating Temperature: 266°F (130°C)
  • Surface ID Finish:< 32Ra
  • Maximum Sterilization Temperature: (20 min/max): 275°F (135°C)
  • Elastomers are FDA and 3A compliant.
Construction:
  • All product contact steel components: 316L stainless steel
  • All non-product contact steel components: 304 stainless steel
Specifications:
  • 3A - authorization number 1655, 53-06 (compression-type valves).
Size Dimensions
A Stroke B C C2 D E F
1" 7.58" 0.41" 2.23" 2.50" 3.20" 2.78" 4.78" 6.00"
Part Number Size Actuator Type Stem Type Wetted Elastomers
D05A10C1EE 1" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A10C2EE 1" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A10C3EE 1" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A10C1EV 1" Spring Return Actuator (Air-To-Raise) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D05A10C2EV 1" Spring Return Actuator (Air-To-Lower) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D05A10C3EV 1" Double Acting Actuator (Air-To-Air) Elastomer O-Ring Stem Seal FKM Wetted Elastomer
D05A10C1PE 1" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal EPDM Wetted Elastomer
D05A10C2PE 1" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal EPDM Wetted Elastomer
D05A10C3PE 1" Double Acting Actuator (Air-To-Air) PTFE Plug Seal EPDM Wetted Elastomer
D05A10C1PV 1" Spring Return Actuator (Air-To-Raise) PTFE Plug Seal FKM Wetted Elastomer
D05A10C2PV 1" Spring Return Actuator (Air-To-Lower) PTFE Plug Seal FKM Wetted Elastomer
D05A10C3PV 1" Double Acting Actuator (Air-To-Air) PTFE Plug Seal FKM Wetted Elastomer
D05A10C1EEA 1" Spring Return Actuator (Air-To-Raise)
10-30VDC External Prox, PNP		 Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A10C2EEA 1" Spring Return Actuator (Air-To-Lower)
10-30VDC External Prox, PNP		 Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A10C1EEE 1" Spring Return Actuator (Air-To-Raise)
Burkert 8691, Single Acting, DeviceNet, Multipin		 Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A10C1EEQ 1" Spring Return Actuator (Air-To-Raise)
External Prox Bracket Only		 Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A10C2EEQ 1" Spring Return Actuator (Air-To-Lower)
External Prox Bracket Only		 Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
D05A10C2EEG 1" Spring Return Actuator (Air-To-Lower)
Burkert 8691, Single Acting, 24VDC, Multipin		 Elastomer O-Ring Stem Seal EPDM Wetted Elastomer
