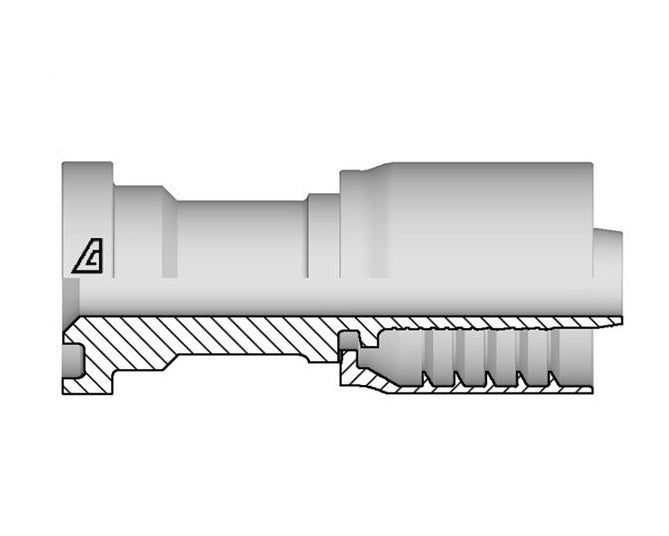

D-2432-C62S Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -24 Hose ID x -32 Code 62 O-Ring Flange | Steel

D-2432-C62S Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | -24 Hose ID x -32 Code 62 O-Ring Flange | Steel

Sale price$132.94

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | Hose Barb x Code 62 O-Ring Flange
Buy More, Save More!
Quantity Price Each
5–19 $124.96
20–59 $113.00
60+ $99.71
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • D Series
Shape:

Straight
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • 6000 PSI
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size Q Flange C
Cut-Off Factor		 Max Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) PSI lbs/each
D-1616-C62S 16 1" 25.4mm 1" 47.6mm 56.4mm 6000 PSI 1.27 lbs
D-2020-C62S 20 1-1/4" 31.8mm 1-1/4" 54.0mm 83.0mm 6000 PSI 2.01 lbs
D-2424-C62S 24 1-1/2" 38.1mm 1-1/2" 63.5mm 101.0mm 6000 PSI 2.77 lbs
D-2432-C62S 24 1-1/2" 38.1mm 2" 63.5mm 71.0mm 6000 PSI 3.35 lbs
D-3232-C62S 32 2" 50.8mm 2" 79.4mm 76.0mm 6000 PSI 4.76 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
