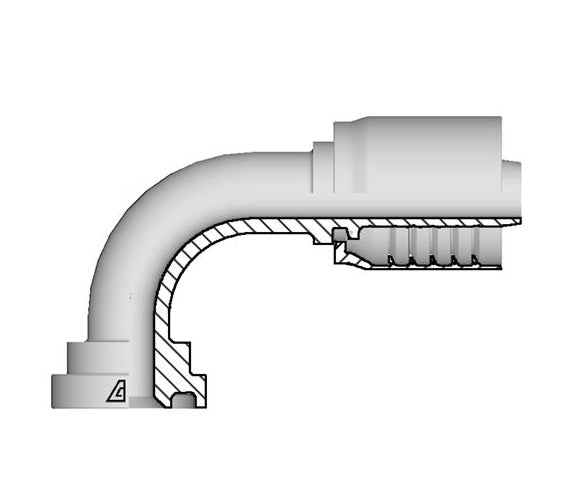

D-2424-C629 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -24 Hose ID x -24 Code 62 O-Ring Flange | Steel

D-2424-C629 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | -24 Hose ID x -24 Code 62 O-Ring Flange | Steel

Sale price$172.96

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 90° Elbow | Hose Barb x Code 62 O-Ring Flange
Buy More, Save More!
Quantity Price Each
5–19 $162.58
20–59 $147.02
60+ $129.72
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • D Series
Shape:

90 Degree
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • 6000 PSI
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size Q Flange C
Cut-Off Factor		 D
Drop		 Max Working
Pressure		 Weight
Dash
Size		 (in.) (mm) (in.) (mm) (mm) (mm) PSI lbs/each
D-1616-C629 16 1" 25.4mm 1" 47.6mm 73.6mm 75mm 6000 PSI 1.42 lbs
D-2020-C629 20 1-1/4" 31.8mm 1-1/4" 54.0mm 94.5mm 89mm 6000 PSI 2.36 lbs
D-2424-C629 24 1-1/2" 38.1mm 1-1/2" 63.5mm 99.6mm 105mm 6000 PSI 2.95 lbs
D-2432-C629 24 1-1/2" 38.1mm 2" 63.5mm 99.0mm 102mm 6000 PSI 3.28 lbs
D-3232-C629 32 2" 50.8mm 2" 79.4mm 143.3mm 132mm 6000 PSI 5.65 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
