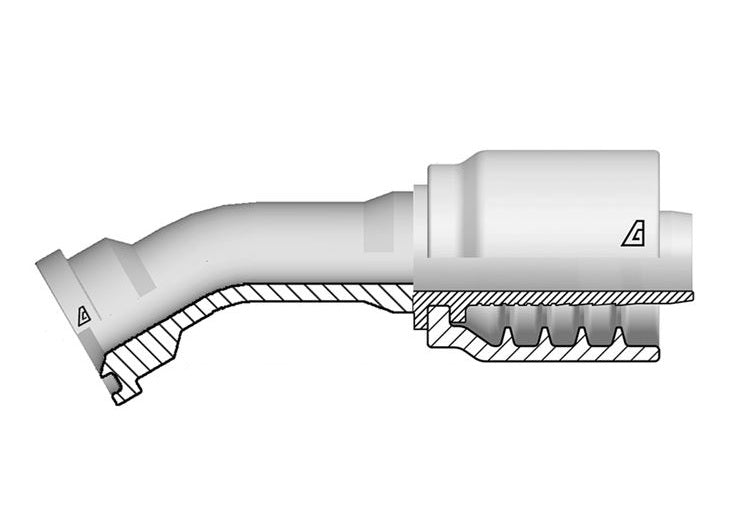

D-1212-C613 Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | SAE J518 | 30° Elbow | -12 Hose ID x -12 Code 61 O-Ring Flange | Steel

$53.78

Quantity:

Buy More, Save More!
Quantity	Price Each
10–39	$50.55
40–79	$45.71
80+	$40.34

Discounts applied in cart/checkout.

Product Data:

Brand:

Alfagomma

Series:

D Series

Shape:

30 Degree

About D-Series Fittings:
A one-piece non-skive crimp fitting for: Wire braided hoses above 1" ID and 4 wire spiral hose. Alfabiotech 3000 1-1/4" ID thru 2" ID. Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.
Material:
Steel


Part Number	Hose ID Size			Q Flange		C Cut-Off Factor	D Drop	Max Working Pressure	Weight
Part Number	Dash Size	(in.)	(mm)	(in.)	(mm)	(mm)	(mm)	PSI	lbs/each
D-1212-C613	12	3/4"	19.0mm	1.50"	38.1mm	77.5mm	19mm	5000 PSI	0.84 lbs
D-1216-C613	12	3/4"	19.0mm	1.75"	44.5mm	114.0mm	13mm	5000 PSI	0.97 lbs
D-1616-C613	16	1"	25.4mm	1.75"	44.5mm	90.0mm	20mm	5000 PSI	1.27 lbs
D-1620-C613	16	1"	25.4mm	2.00"	50.8mm	89.0mm	22mm	4000 PSI	1.36 lbs
D-2020-C613	20	1-1/4"	31.8mm	2.00"	50.8mm	89.0mm	22mm	4000 PSI	1.74 lbs
D-2024-C613	20	1-1/4"	31.8mm	2.38"	60.3mm	104.0mm	19mm	3000 PSI	1.85 lbs
D-2432-C613	24	1-1/2"	38.1mm	2.81"	71.4mm	145.0mm	35mm	3000 PSI	3.38 lbs
