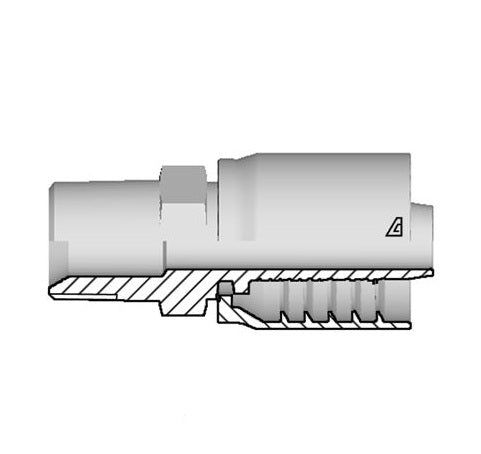

D-0608-MBPT Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -08 Male BSPT / JIS | Steel

D-0608-MBPT Alfagomma by Kuriyama | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | -06 Hose ID x -08 Male BSPT / JIS | Steel

Sale price$17.28

Kuriyama of America Inc.
Alfagomma | D Series | One-Piece AlfaCrimp Hydraulic Hose Fitting | Hose Barb x Male BSPT / JIS
Buy More, Save More!
Quantity Price Each
10–39 $16.24
40–79 $14.69
80+ $12.96
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Alfagomma
Series:
  • D Series
Shape:

Straight
About D-Series Fittings:
  • A one-piece non-skive crimp fitting for:
    • Wire braided hoses above 1" ID and 4 wire spiral hose.
    • Alfabiotech 3000 1-1/4" ID thru 2" ID.
    • Alfabiotech 4000 3/8" ID thru 1-1/4" ID.
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Material:
  • Steel
Part Number Hose ID Size F Thread C
Cut-Off Factor		 CH1 Weight
Dash
Size		 (in.) (mm) Dash Size Size
(in) - TPI		 (mm) (mm) lbs/each
D-0606-MBPT 06 3/8" 9.5mm 06 3/8-19 27.8mm 19mm 0.20 lbs
D-0608-MBPT 06 3/8" 9.5mm 08 1/2-14 32.3mm 22mm 0.26 lbs
D-0808-MBPT 08 1/2" 12.7mm 08 1/2-14 33.1mm 22mm 0.30 lbs
D-1012-MBPT 10 5/8" 15.9mm 12 3/4-14 34.1mm 27mm 0.44 lbs
D-1212-MBPT 12 3/4" 19.0mm 12 3/4-14 34.6mm 27mm 0.50 lbs
D-1216-MBPT 12 3/4" 19.0mm 16 1-11 43.6mm 36mm 0.66 lbs
D-1616-MBPT 16 1" 25.4mm 16 1-11 44.4mm 36mm 0.96 lbs
D-2020-MBPT 20 1-1/4" 31.8mm 20 1-1/4-11 49.0mm 46mm 1.40 lbs
D-2424-MBPT 24 1-1/2" 38.1mm 24 1-1/2-11 50.5mm 50mm 1.92 lbs
D-3232-MBPT 32 2" 50.8mm 32 2-11 54.2mm 65mm 2.78 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
